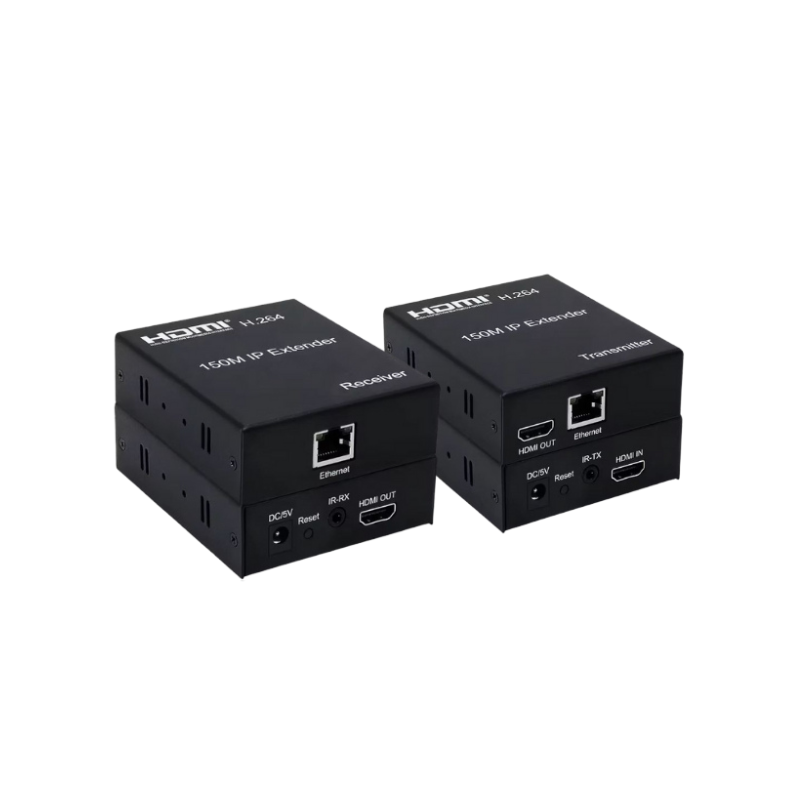

Wireless HDMI 150M IP Extender with Transmitter & Receiver | HEW150

Features:

Supports HDMI 1.3

H.264 encoding, 8.1 Mbps transmission rate

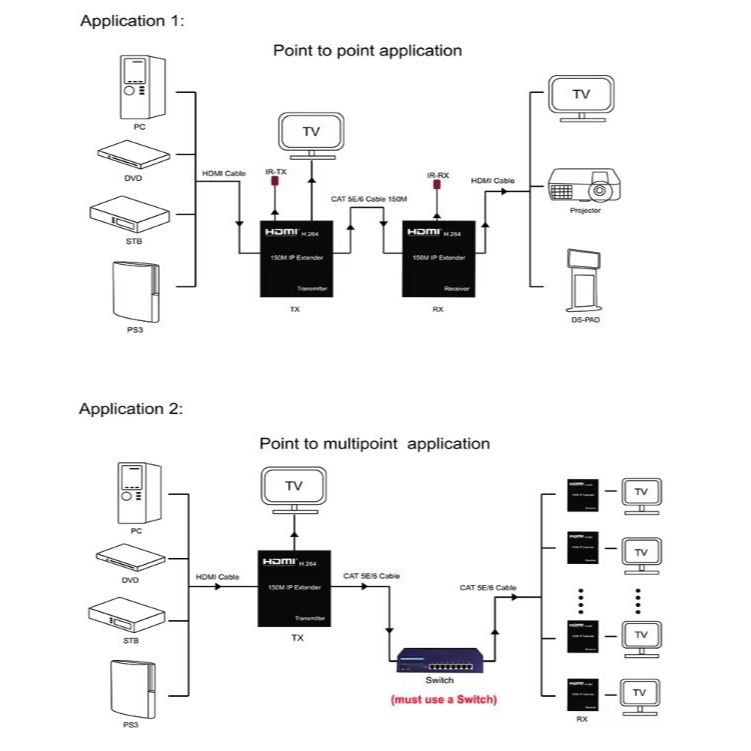

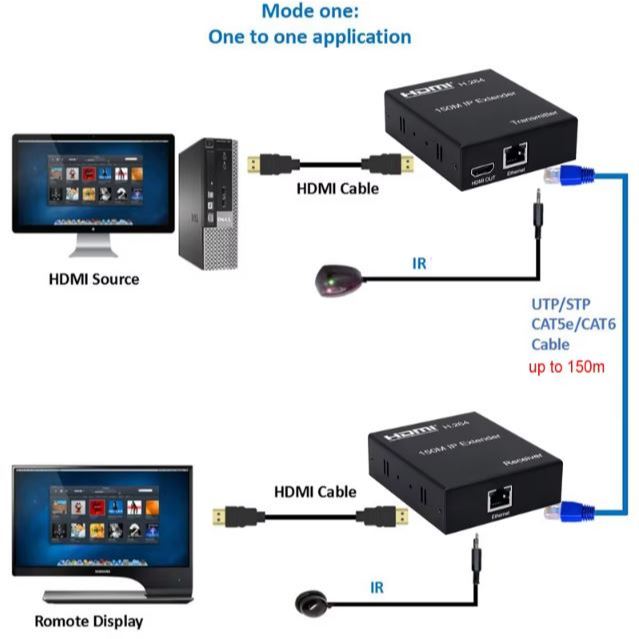

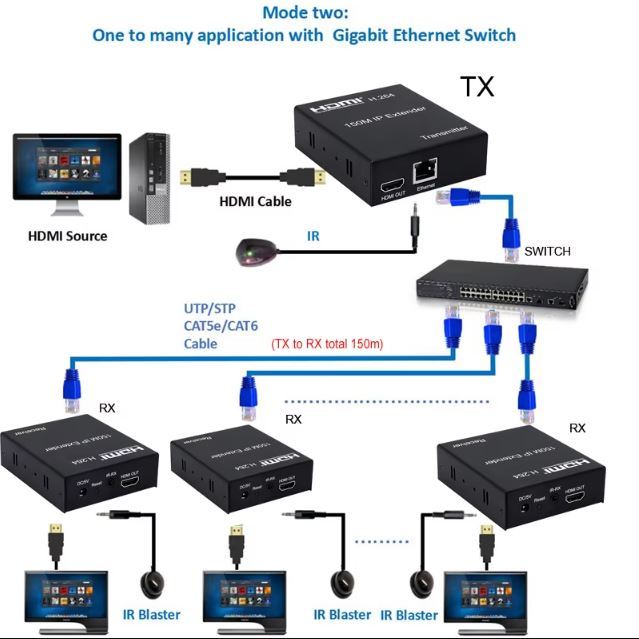

Point-to-point, one-to-multi, and cascade connection modes

802.3 Ethernet standard

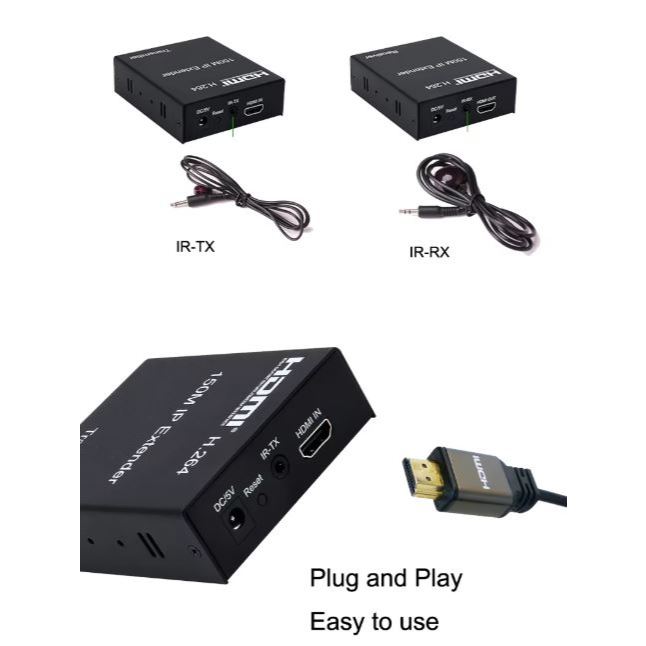

Supports IR remote control (38kHz, NEC)

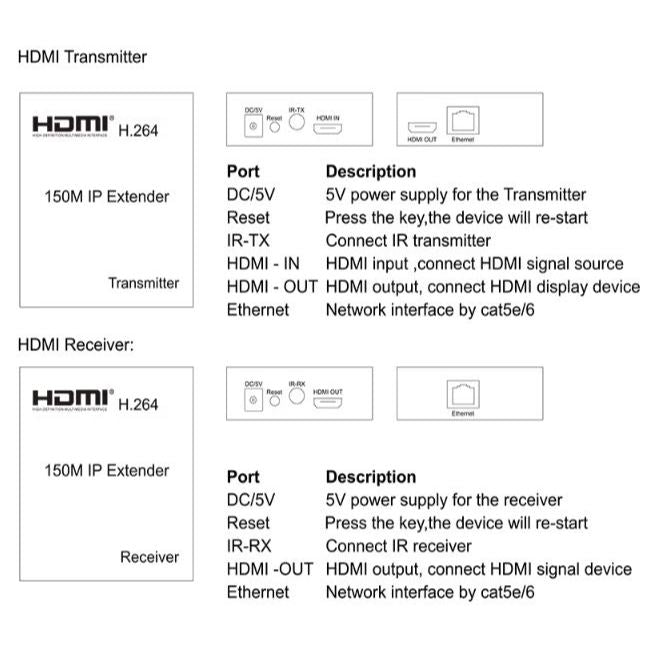

HDMI loop-out function on transmitter

Plug-and-play hardware design, no software required

Specifications:

HDTV Resolutions: 480p, 720p, 1080p

Audio Sample Rate: 32kHz, 44.1kHz, 48kHz

Power Adapter: DC 5V/2.5A

Max Power Consumption:

HDMI Transmitter: 3W

HDMI Receiver: 3W

Weight: 228g x 2

Product instructions

Please prepare the set-top box, HMDI display device and the required length of the network cable before installation and commissioning. The crystal head crimping on both sides of the cable is arranged in the same way. Please confirm that the power is off before installation and install in the following order.

1. Connect the HDMI signal source and the transmitting end with the line standard of the extender;

2. Plug one end of the network cable into the network port on the transmitter;

3. Connect the power adapter of the receiving end;

4. Connect the HDMI port of the receiving end to the HDTV with an HDMI cable;

5. Turn on the power of the set-top box and activate the LCD TV to switch to the HDMI input.
