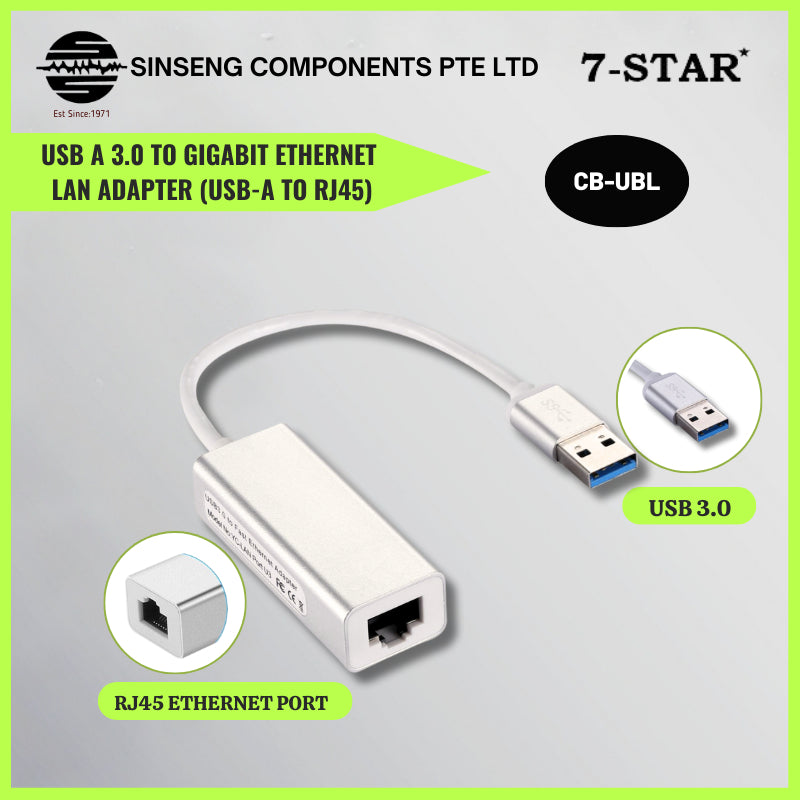

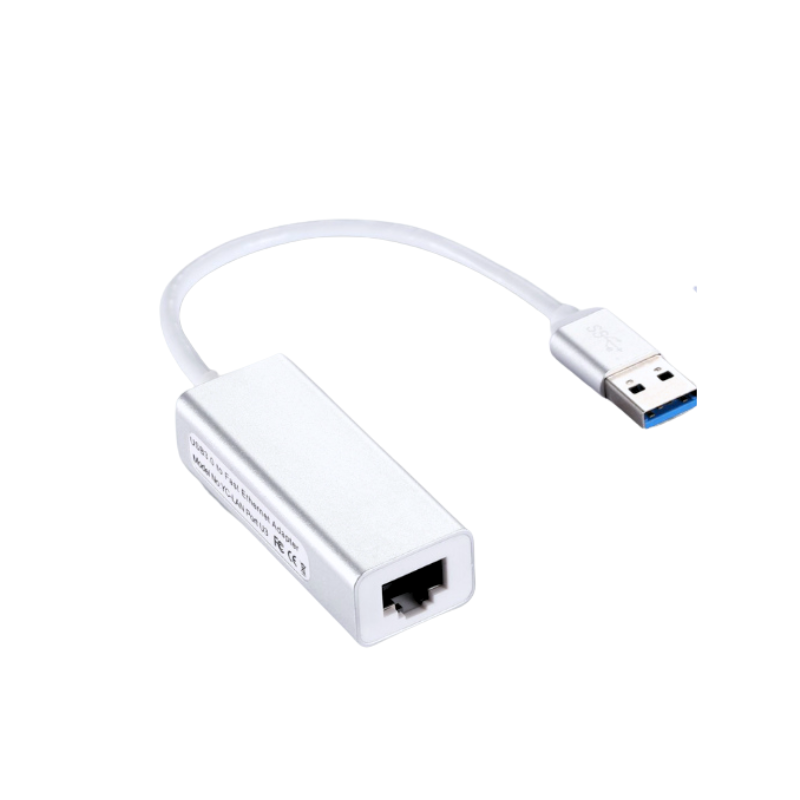

USB 3.0 to Gigabit RJ45 Ethernet Adapter 1000Mbps for MacBook/PC | CB-UBL

Key Specifications / Special Features:

• Compliance:

  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3z (1000Base-T Gigabit Ethernet)

• Transmission:

  • RJ45 port for high-speed transmission over CAT5 UTP cable
  • Auto-negotiation with next page capability
  • Supports pair swap, polarity, and skew correction
  • Crossover detection and auto-correction

• Offload Support:

  • NDIS5 Checksum offload (IP, TCP, UDP)
  • Large send offload support

• Flow Control:

  • Supports full-duplex flow control (IEEE 802.3x)
  • Supports IEEE 802.3az (Energy Efficient Ethernet)
  • Supports jumbo frame support

• Wake-on-LAN:

  • Supports wake-on-LAN function

• Auto-Sensing:

  • 10/100 or 10/100/1000 auto-sensing (auto-MDIX capable)

• USB Compatibility:

  • Complies with USB 3.0 SuperSpeed specification (5Gbps transfer rate)
  • Backwards compatible with USB 2.0 and USB 1.1
  • USB-powered, no additional power adapter required
  • Supports hot-swap and plug-and-play functionality

• Thermal Design:

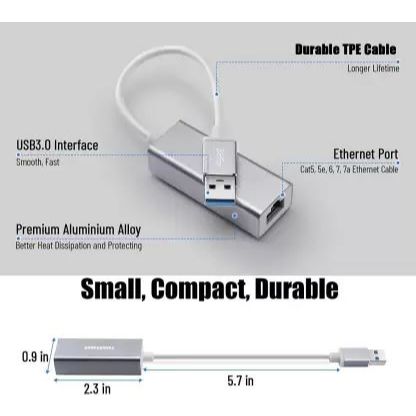

  • Special thermal dissipation design for low heat generation

• Driver Support:

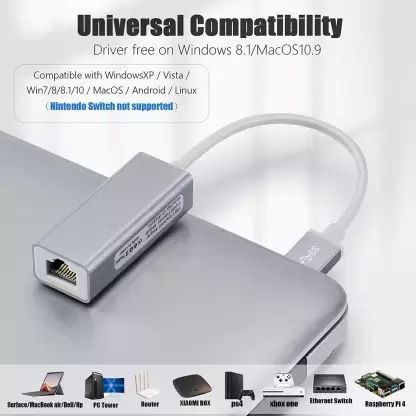

  • Compatible with 64-bit and 32-bit Windows 8, Windows 7, XP, and Mac OS
