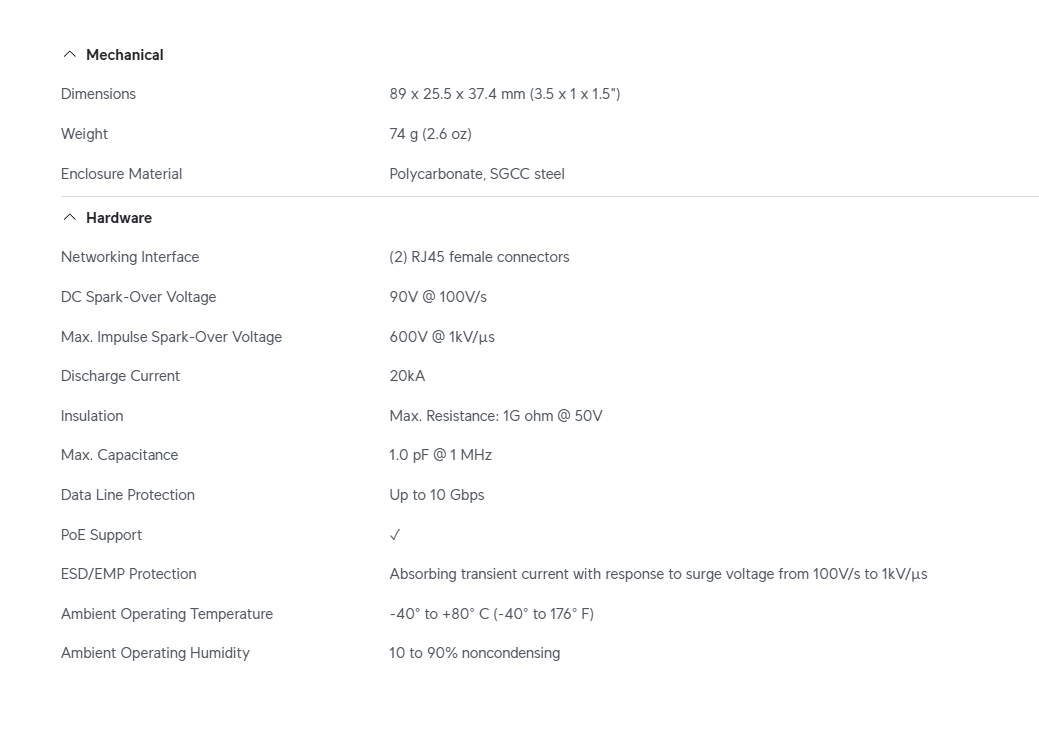

Mechanical
Dimensions
89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")
Weight 74 g (2.6 oz)
Enclosure Material Polycarbonate, SGCC steel
Hardware

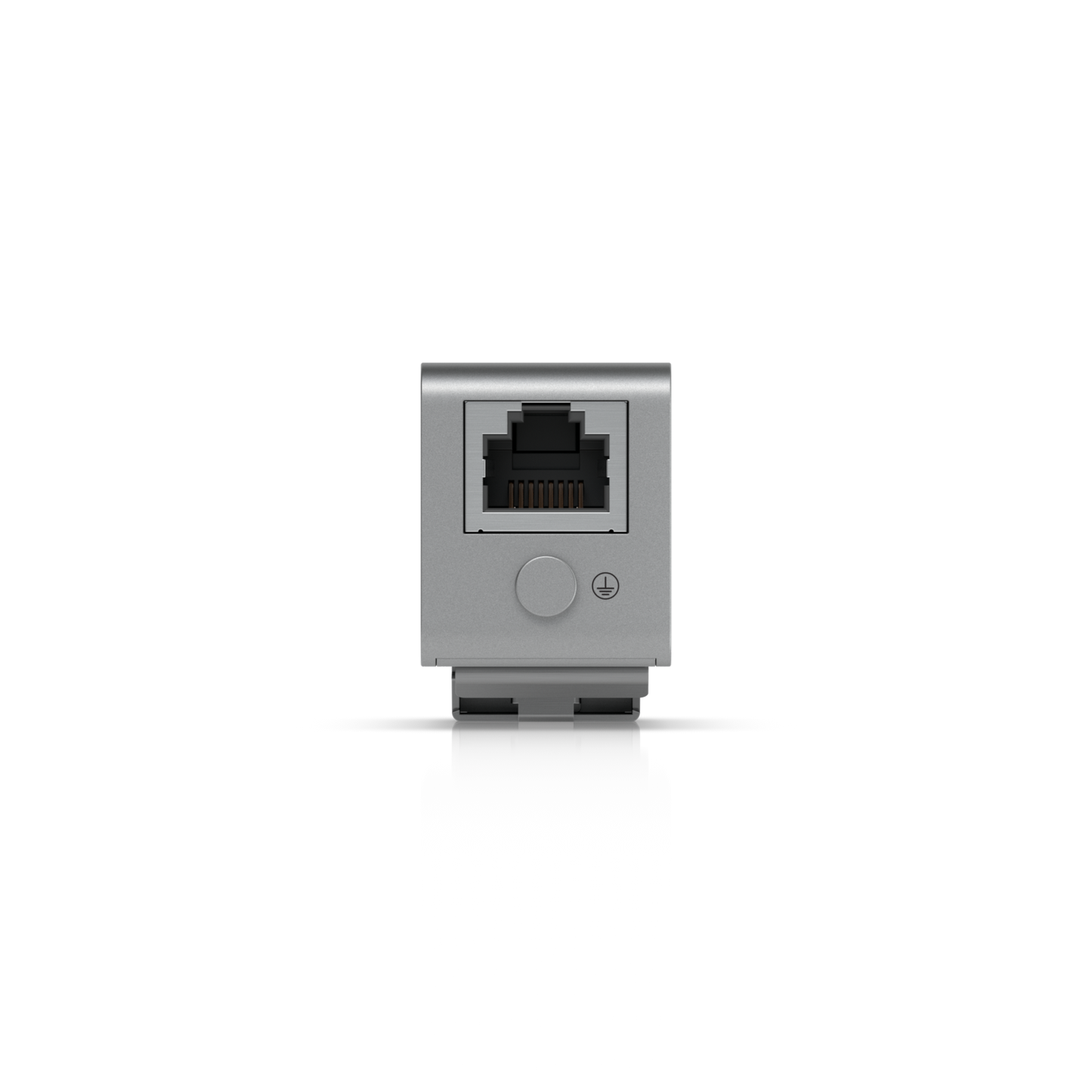

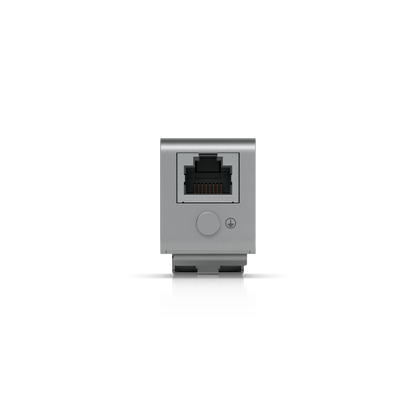

Networking Interface (2) RJ45 female connectors
DC Spark-Over Voltage 90V @ 100V/s
Max. Impulse Spark-Over Voltage 600V @ 1kV/µs
Discharge Current 20kA
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance 1.0 pF @ 1 MHz
Data Line Protection Up to 10 Gbps
PoE Support ESD/EMP Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
