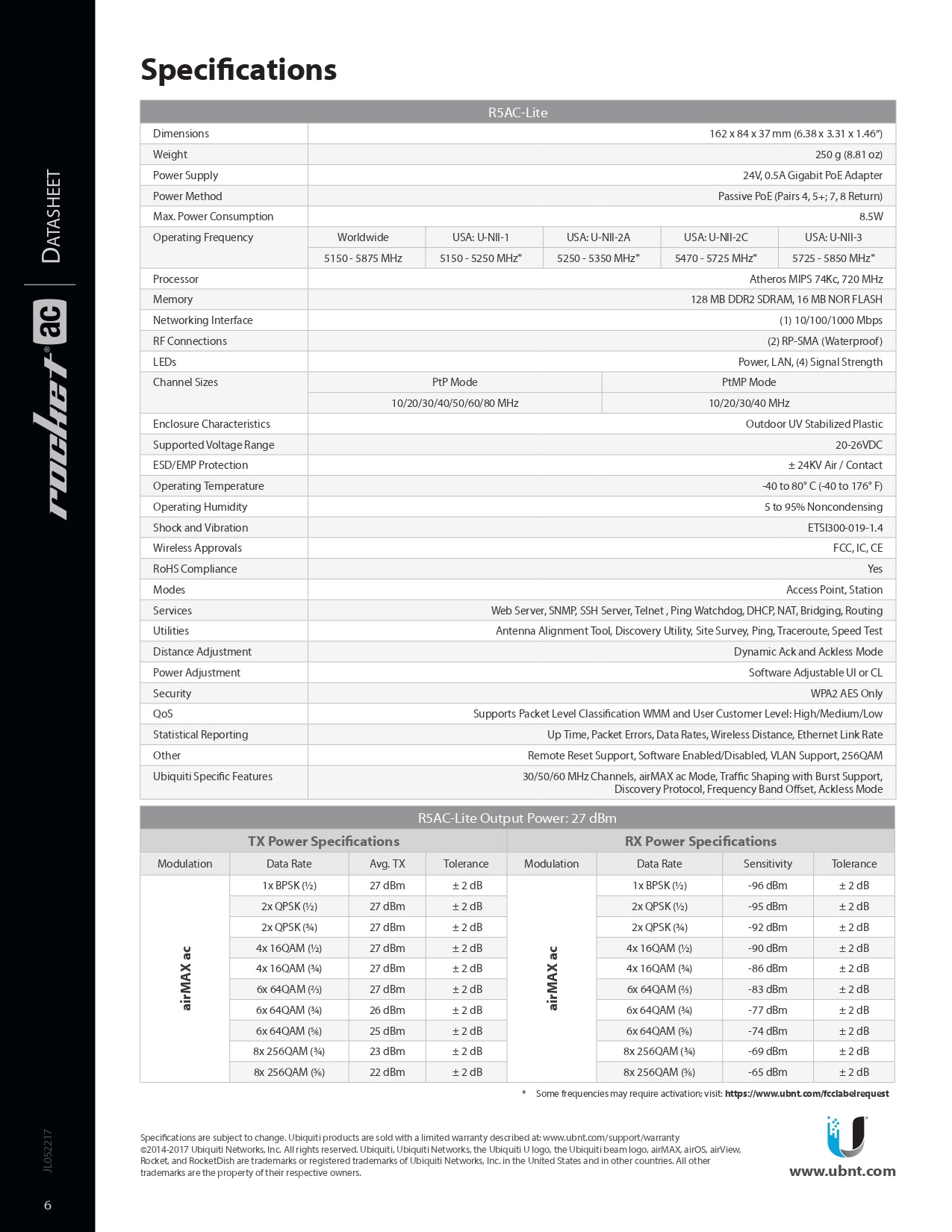

Dimensions: 162 x 84 x 37 mm (6.4 x 3.3 x 1.5")
-
Weight: 250 g (8.8 oz)
-
Enclosure Material: UV-stabilized plastic
-
Networking Interface: 1x Gigabit Ethernet (RJ45)
-
Power Method: Passive PoE (2-pair: pins 4,5+ and 7,8 return)
-
Power Supply: 24V, 0.5A Gigabit PoE adapter (included)
-
Supported Voltage Range: 20–27V DC
-
Max Power Consumption: 8.5W
-
ESD/EMP Protection: ±24kV air/contact
-
RF Connectors: 2x RP-SMA (waterproof)
-
LED Indicators: Power, LAN, 4x signal strength
-
Shock & Vibration Resistance: ETSI300-019-1.4 compliant
-
Operating Temperature: -40 to 80°C (-40 to 176°F)
-
Operating Humidity: 5% to 95% (non-condensing)
-
Certifications: CE, FCC, IC
-
NDAA Compliant: Yes
-
Management Radio Frequency Range (Global): 5150 – 5875 MHz
-
US/CA Frequency Bands:
