Ubiquiti UA-G3-SK G3 Access Reader Starter Kit with Apple Touch Pass

UniFi Door Access Kit – Overview

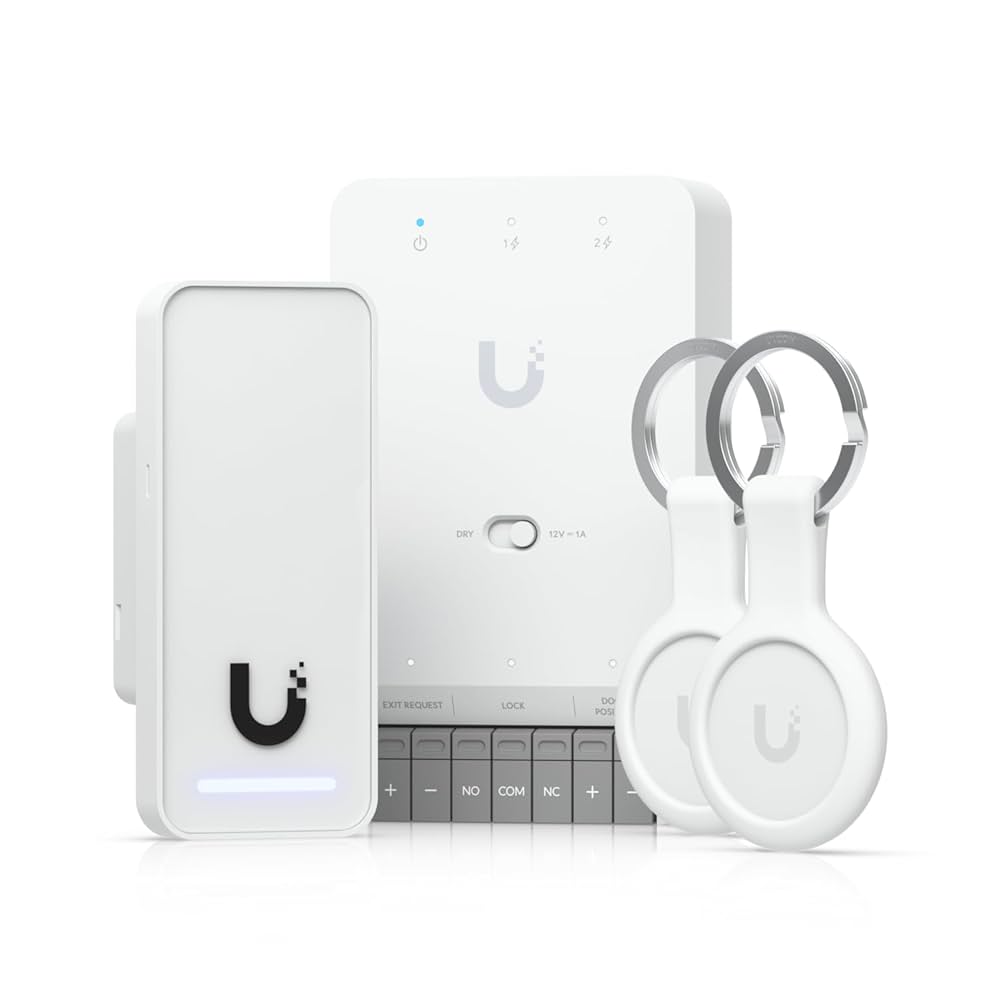

What’s in the Box:

• 1x Door Hub Mini

• 1x G3 Reader

• 2x NFC Pocket Keyfobs

• 10 free 1-year Touch Passes

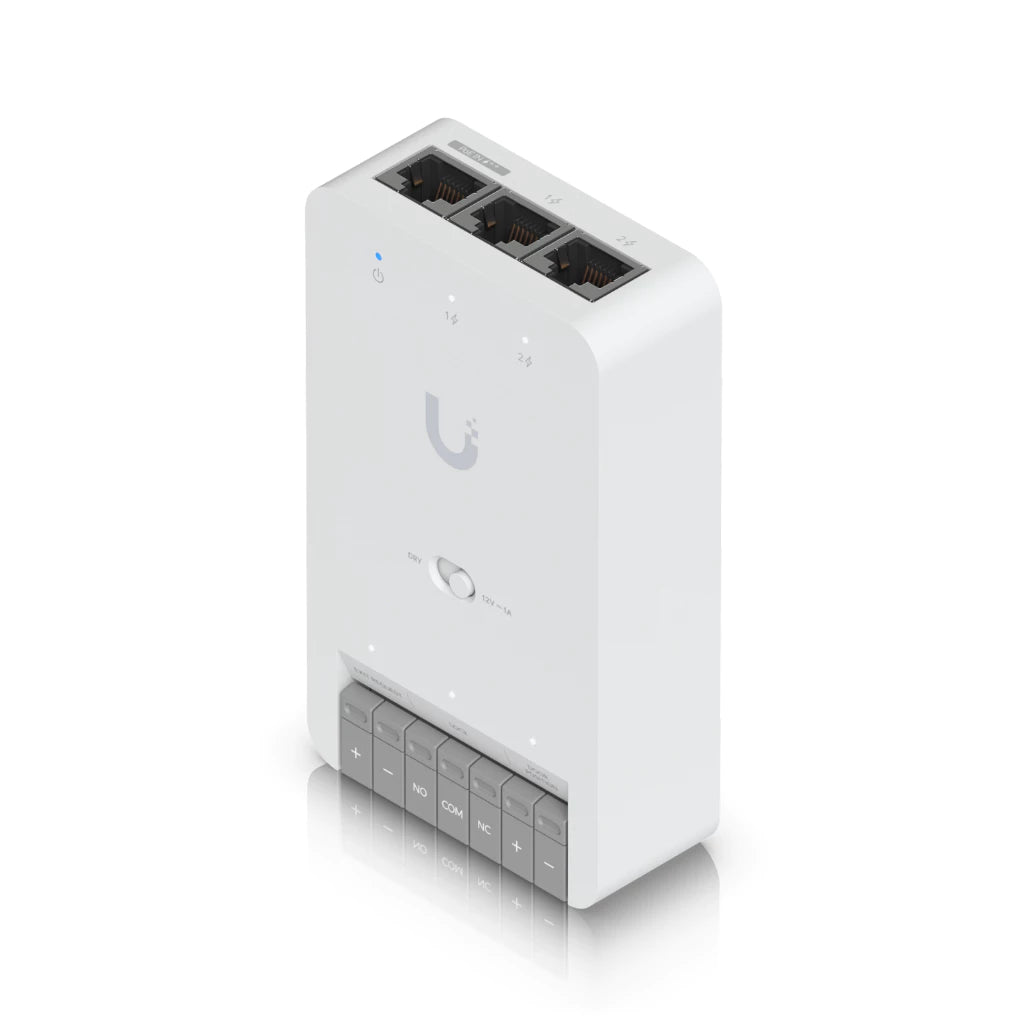

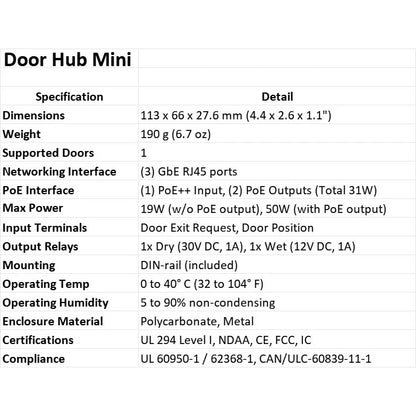

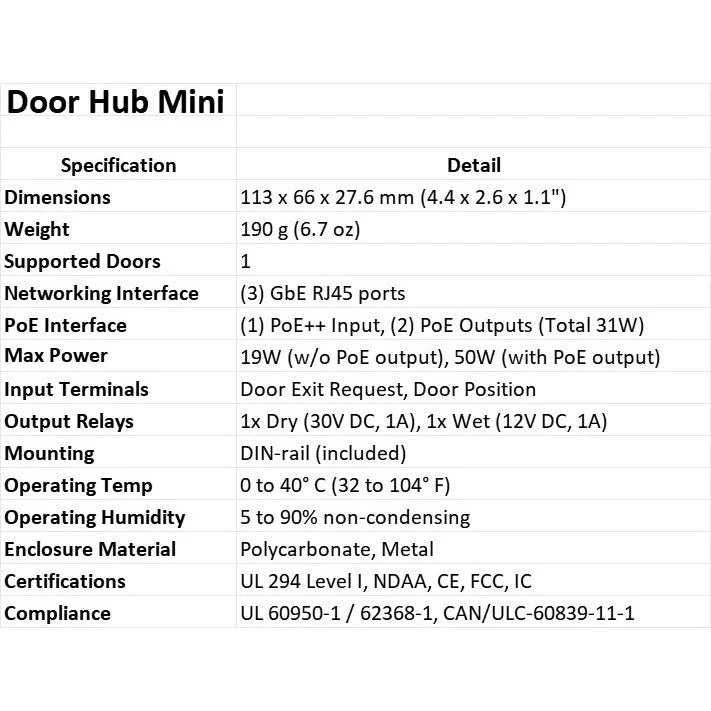

Door Hub Mini

• Controls: 1 door

• Power: PoE++ (Max 50W with output)

• Ports: 3x Gigabit Ethernet

• Inputs: Door position sensor, exit button

• Outputs: Dry/Wet relay

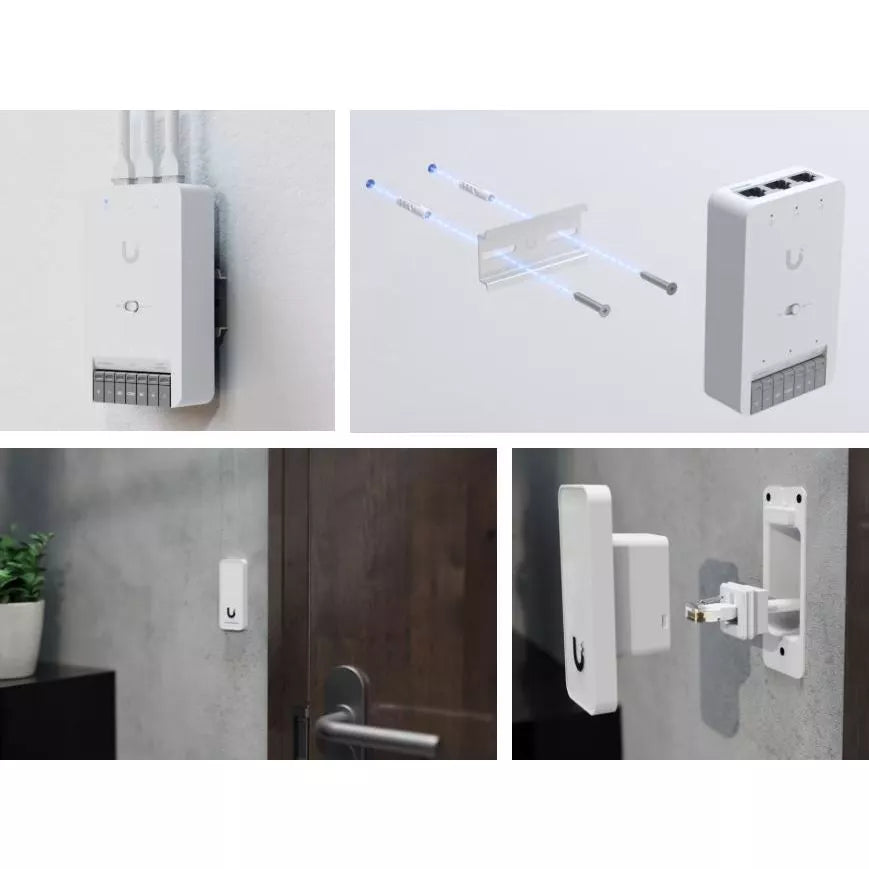

• Mounting: DIN rail (included)

• Certifications: UL 294, NDAA, CE, FCC

• Dimensions / Weight: 113 × 66 × 27.6 mm / 190g

• Operating Temp: 0–40°C

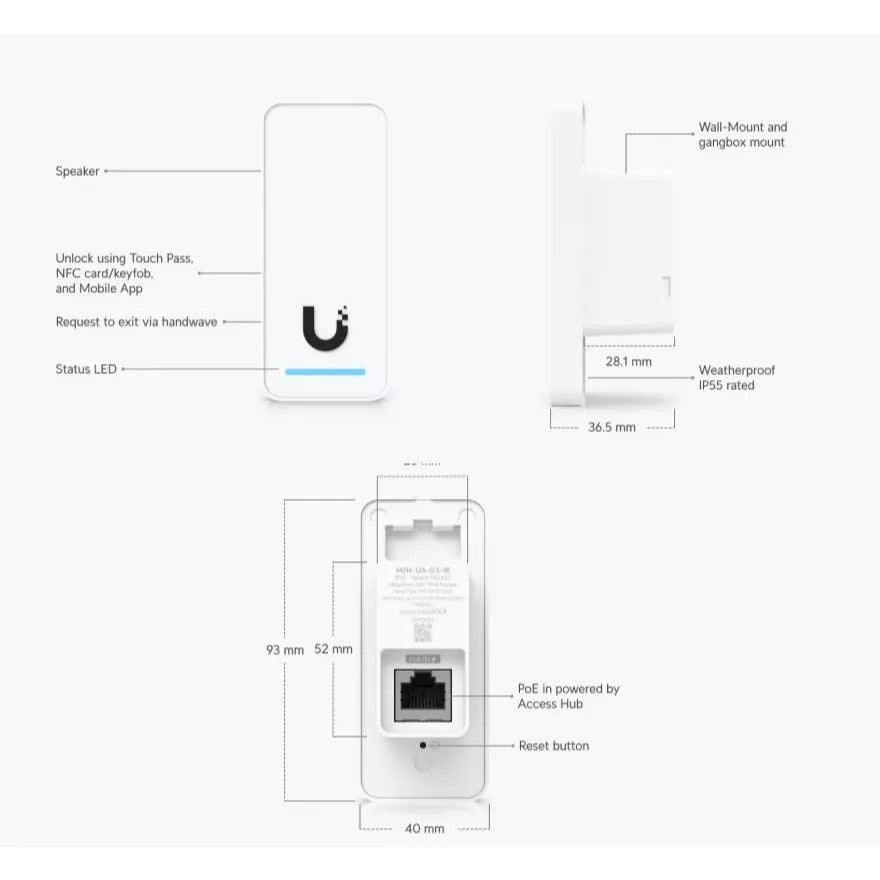

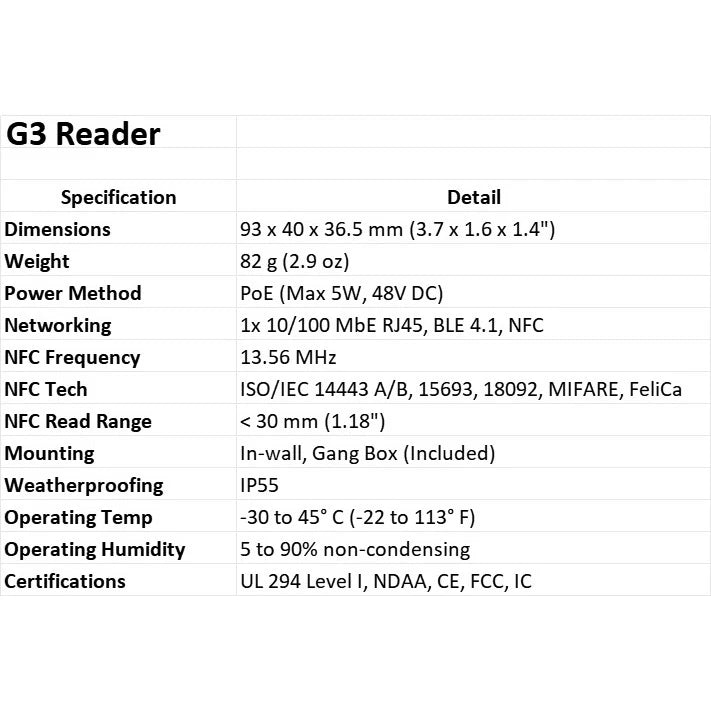

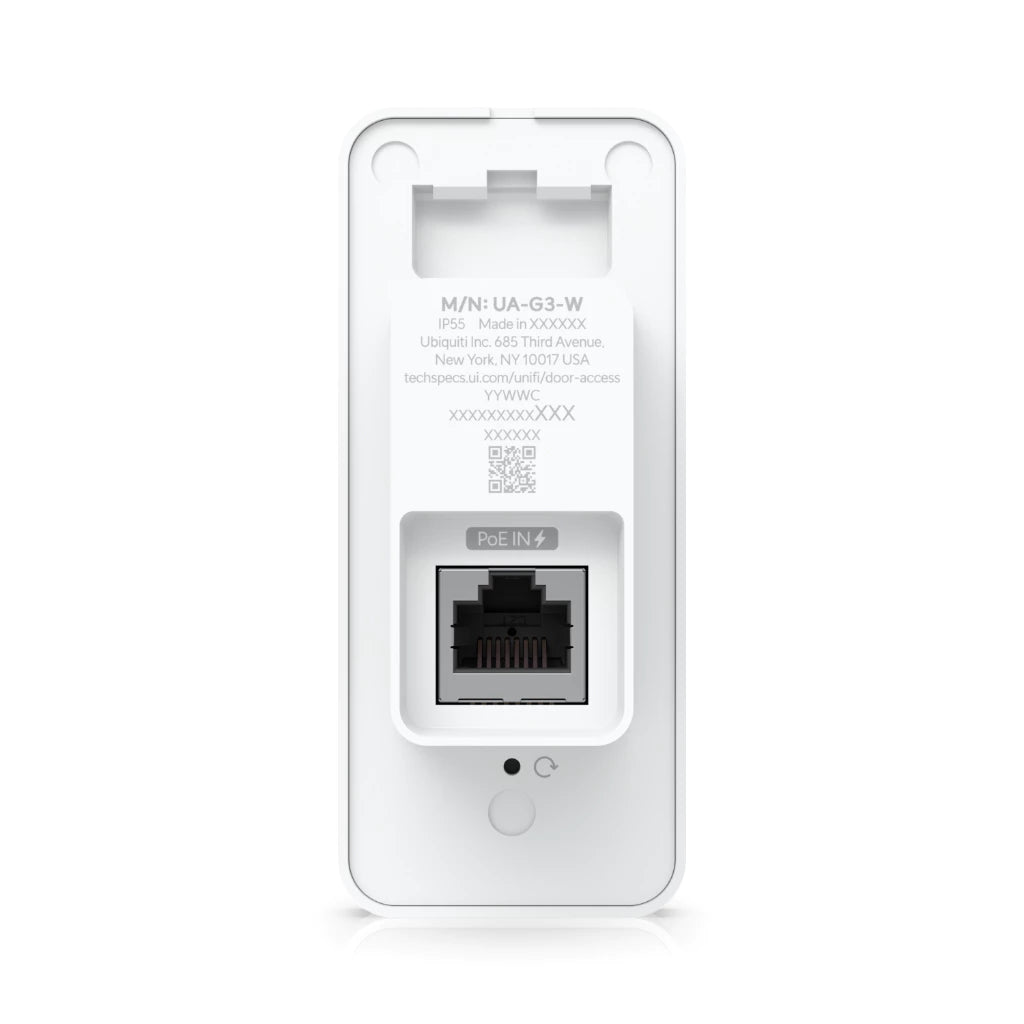

G3 Reader

• Access Methods: NFC, Mobile App, Apple/Google Wallet, Handwave Exit

• Power: PoE (Max 5W)

• Connectivity: 1x 10/100 Mbps Ethernet, BLE 4.1, NFC

• Mounting: In-wall / gang box

• Weatherproof: IP55

• Dimensions / Weight: 93 × 40 × 36.5 mm / 82g

• Operating Temp: -30–45°C

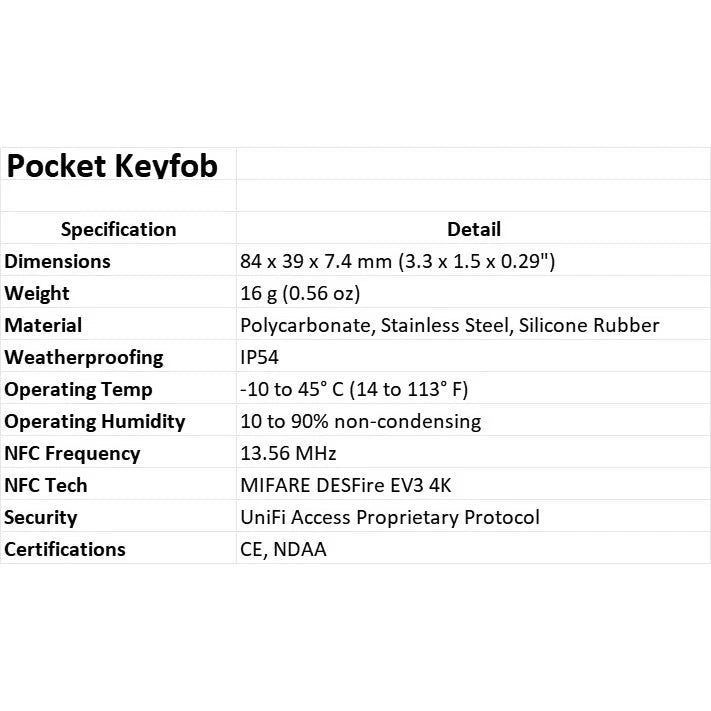

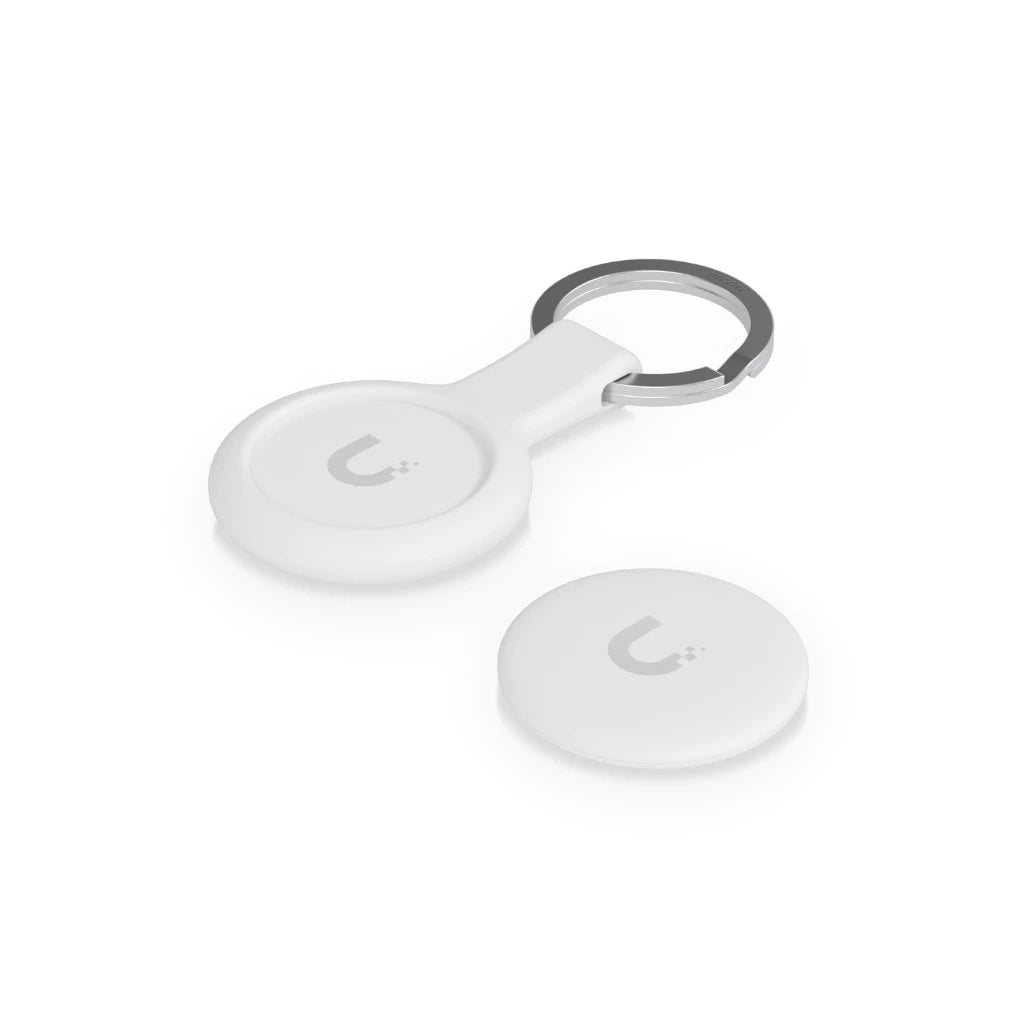

Pocket Keyfob

• Technology: MIFARE DESFire EV3 (NFC)

• Weatherproof: IP54

• Dimensions / Weight: 84 × 39 × 7.4 mm / 16g
