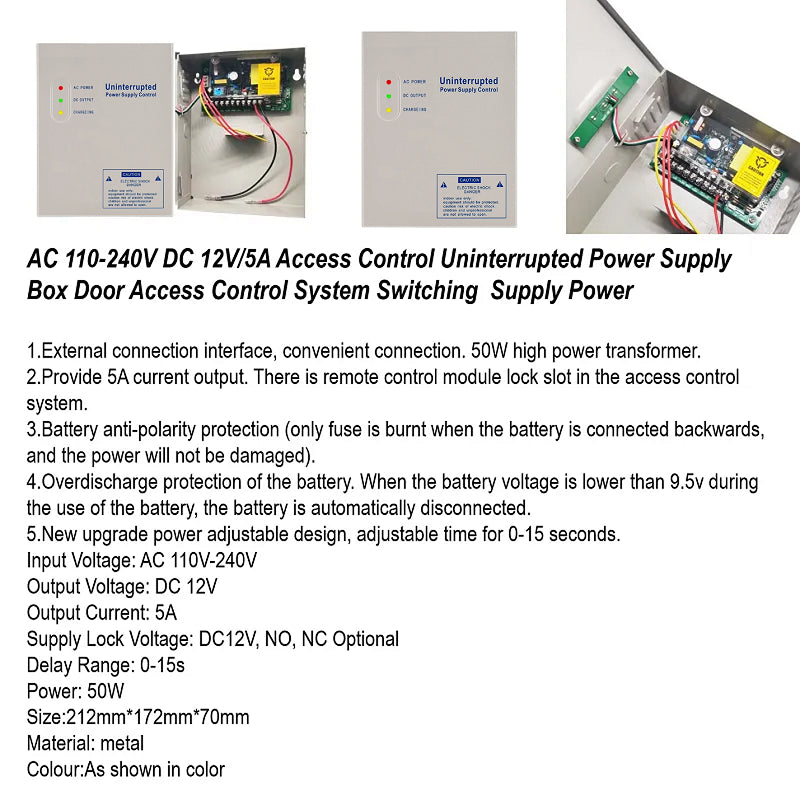

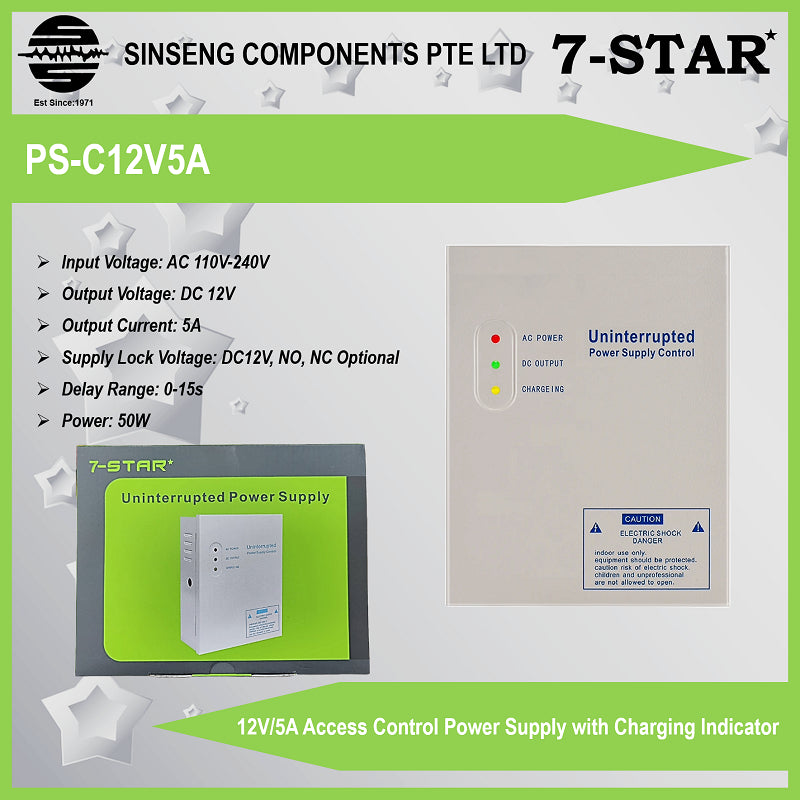

DC12V/5A Door Access PSU with Battery Charging Indicator & Relay | PS-C12V5A

Features:

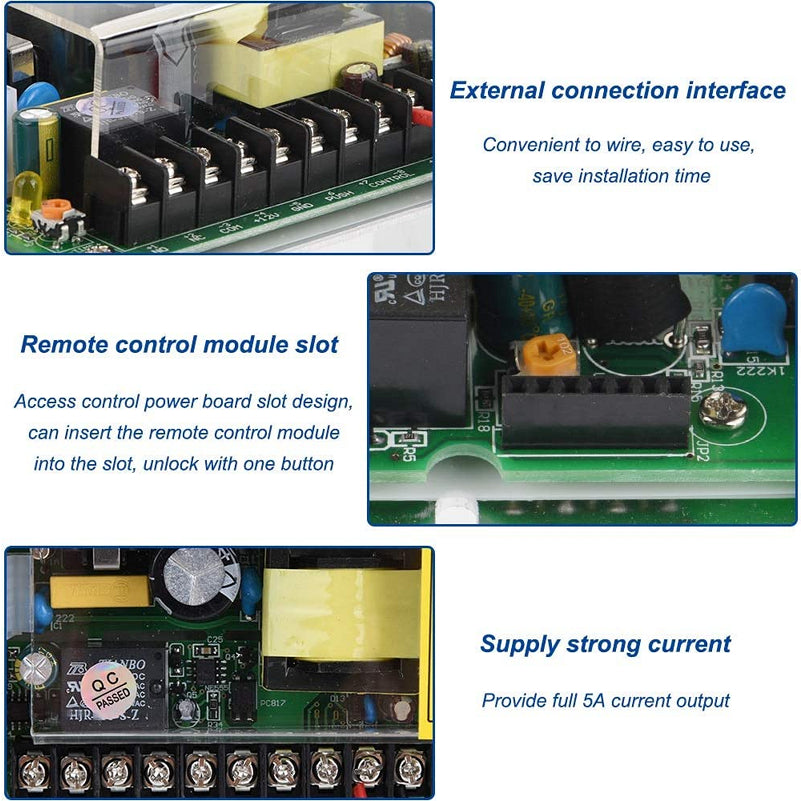

• External Connection Interface: Convenient for easy and secure connections.
• High-Power Transformer: Equipped with a 50W high-power transformer for reliable performance.
• Remote Control Module Lock Slot: Integrated within the access control system for seamless control.

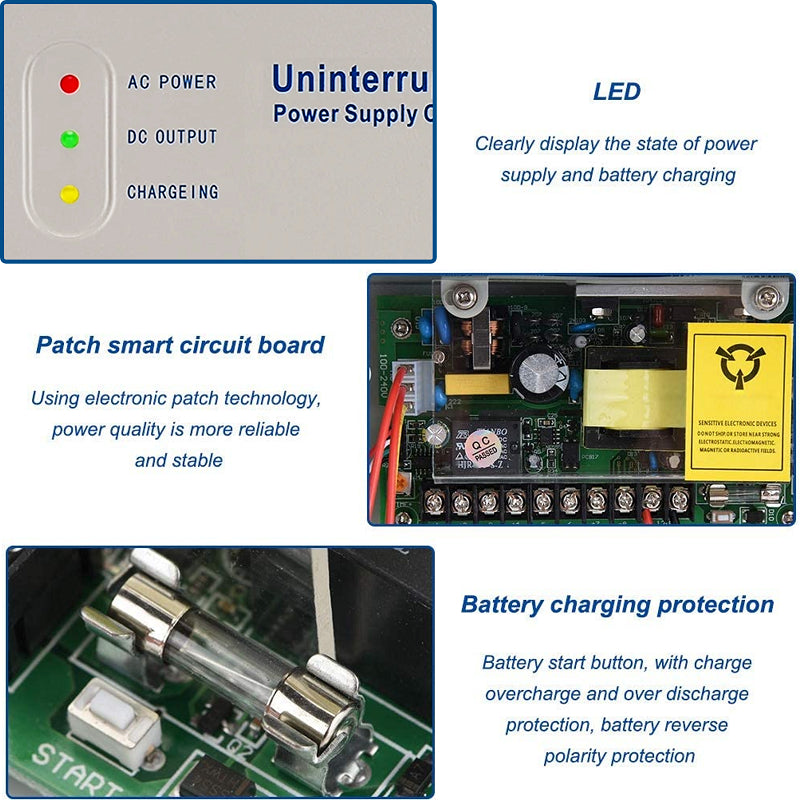

• Battery Anti-Polarity Protection: Ensures safety by only burning the fuse if the battery is connected backward, without damaging the power supply.
• Over-Discharge Protection: Automatically disconnects the battery if the voltage drops below 9.5V to prevent damage.
• Adjustable Power Design: New upgrade with adjustable time from 0 to 15 seconds for customizable lock control.
• Lock Voltage Options: Provides DC 12V output for locks with NO (Normally Open) and NC (Normally Closed) options.

Specifications:

• Input Voltage: AC 110V-240V
• Output Voltage: DC 12V
• Output Current: 5A
• Lock Voltage: DC12V, NO, NC Optional
• Delay Range: 0-15 seconds (adjustable)
• Power: 50W
• Size: 212mm x 172mm x 70mm
• Material: Metal casing for durability
• Color: As shown in the provided image
