5A Door Access UPS Power Supply 12V-13.5V with Relay | PS5A12V/DOOR ACCESS

Features:

• Full Voltage-Stabilizing Power Supply: Provides stable 13.5V DC power with a 5A output, ideal for access control systems, electric locks, and card readers.
• Adjustable Unlock Time: Features an adjustable unlock time knob with a range of 0-10 seconds, allowing flexibility in lock operation.
• NC/NO Output: Configurable for different electric lock types with Normal Open (NO) or Normal Closed (NC) output.
• Push and Control Input Options: The "PUSH" input can connect to a switch signal, and the "CONTROL" input supports a ±5V to ±12V electric signal.
• Automatic Protection: Includes built-in fuse for overcurrent and short-circuit protection, ensuring safety during operation.

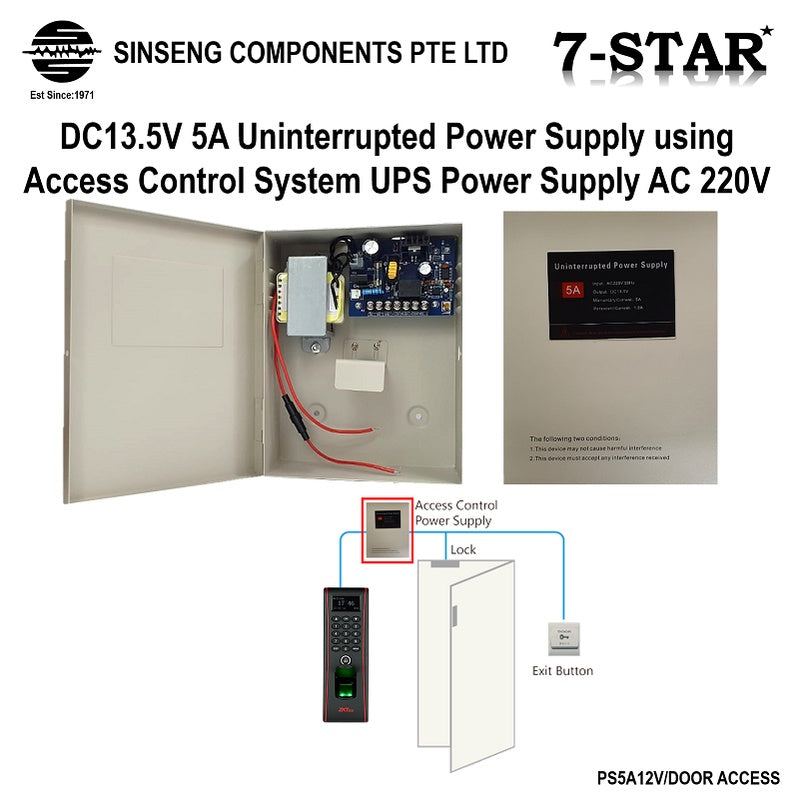

• Versatile Power Supply: Suitable for various access control boards, card readers, and electric locks.
• Supports Backup Battery: Includes space for a backup battery, supporting either one 12V/7A battery, two 6V/4A batteries, or one 12V/7A lithium battery.
• Capacity: Can power up to two electric locks and two card readers in an access control system.

Specifications:

• AC Input: 220VAC, 50Hz
• DC Output: 13.5V DC
• Starting Current: 5A
• Operating Current: 1.8A
• Locks Controlled: 2 units
• Readers Controlled: 2 units
• Operating Temperature: 20-60°C
• Operating Humidity: <90% RH

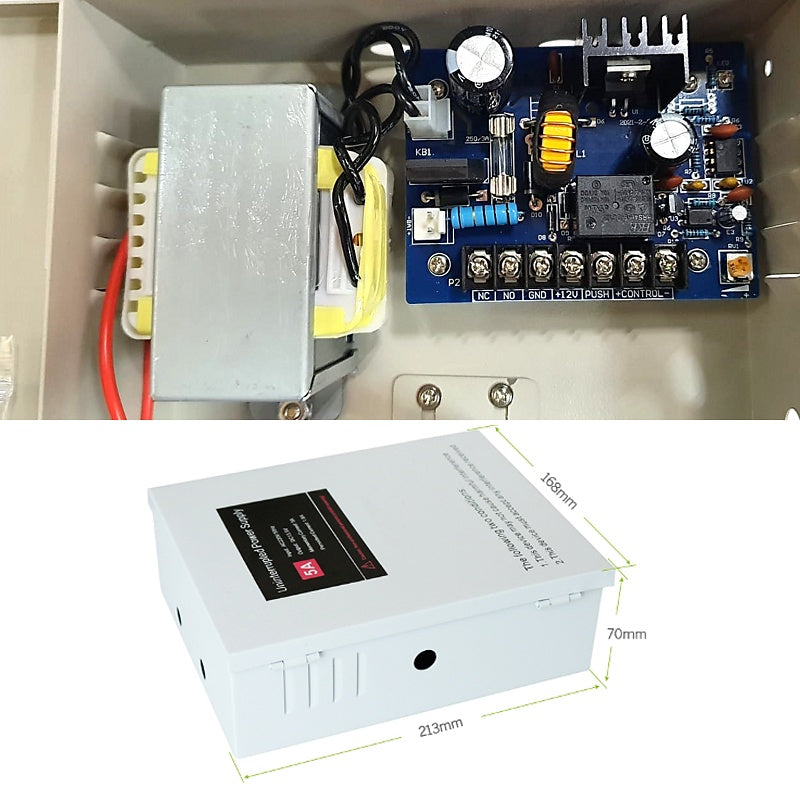

• Dimensions: 214mm x 168mm x 73mm
• Weight: 1.94kg

Package Includes:

• 1 x Uninterrupted Power Supply (UPS) for Access Control Systems
