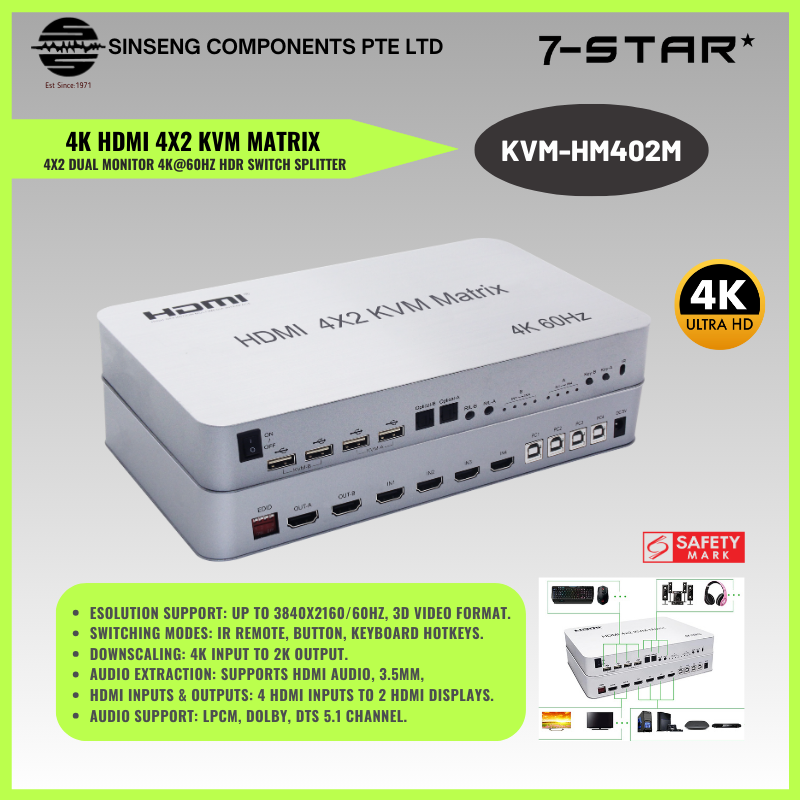

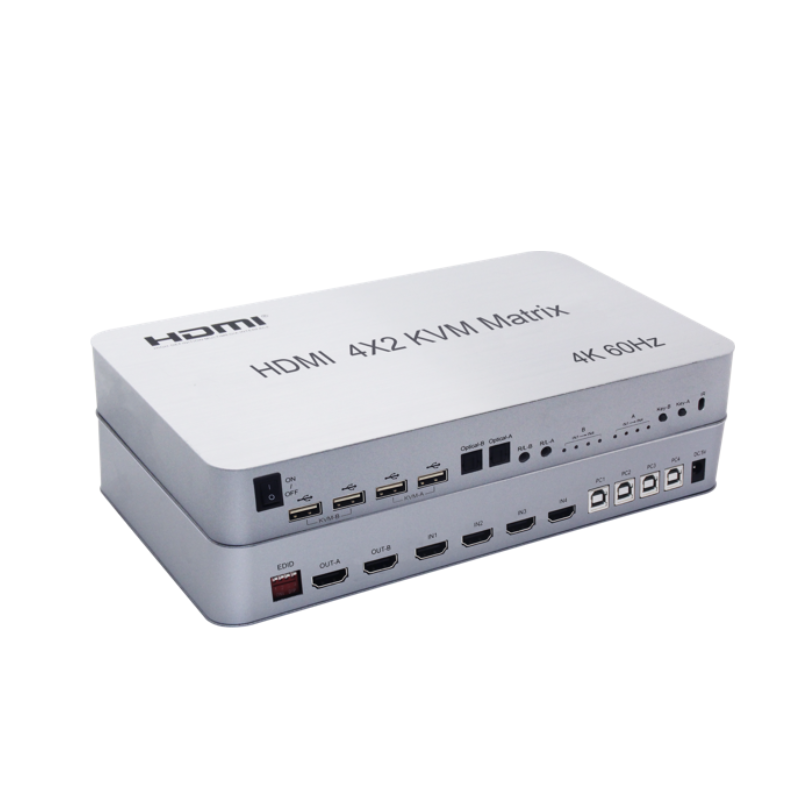

4K HDMI 4x2 KVM Matrix Switcher for USB Keyboard/Mouse | KVM-HM402M

Features & Benefits:

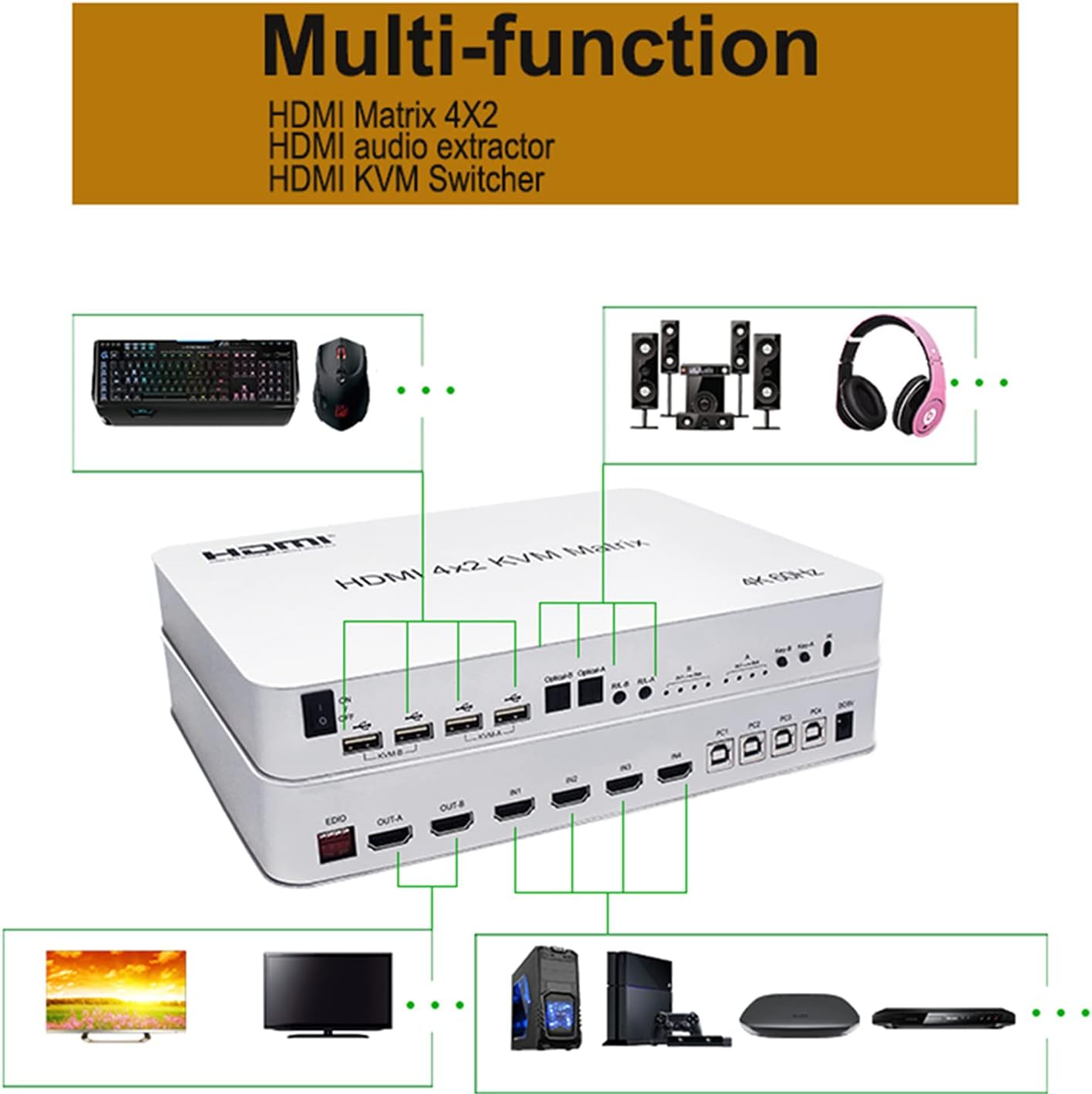

1. 4 Input Sources & 2 Monitors:

   • Manage 4 HDMI-compatible devices and switch between them.

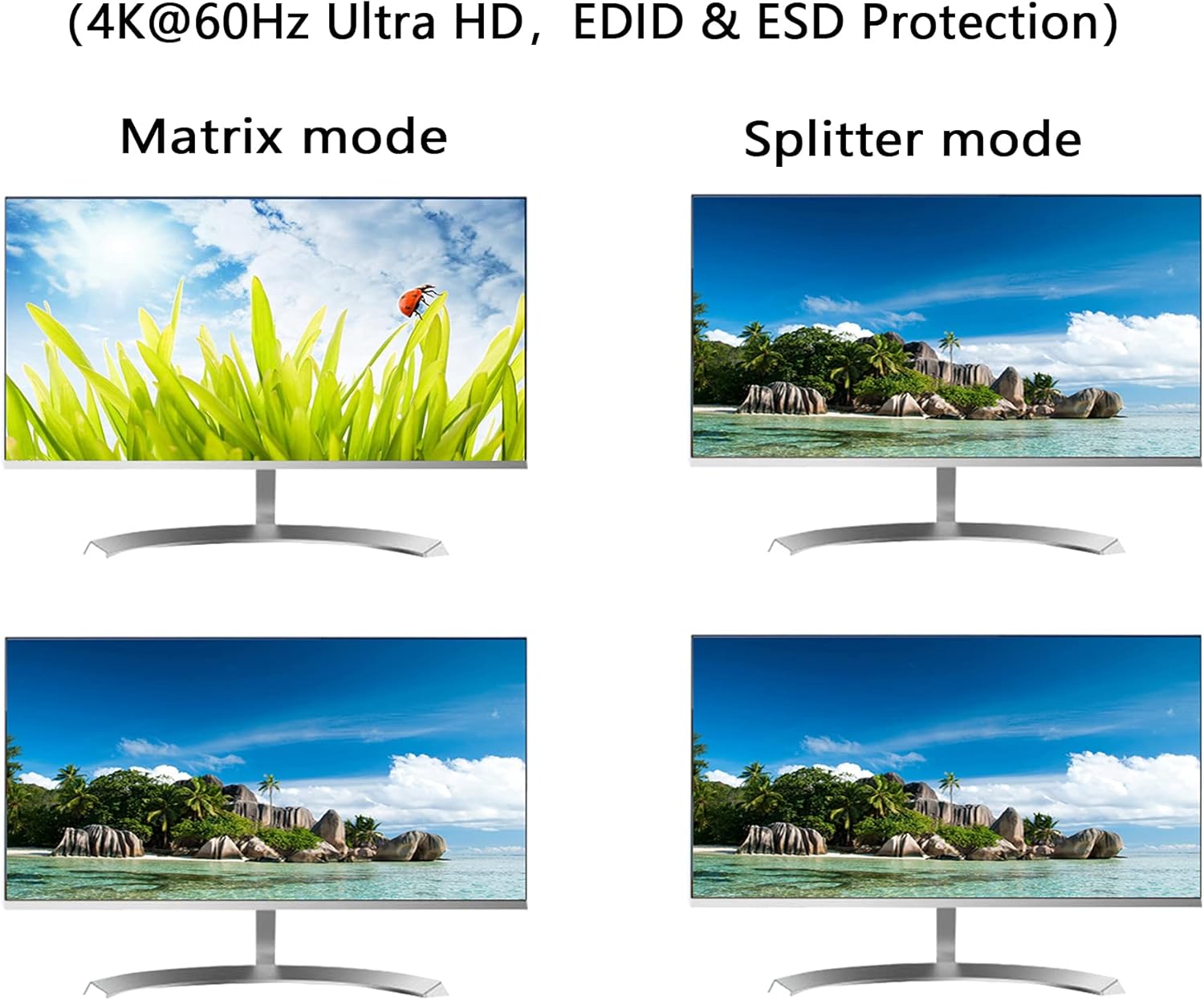

   • Distribute the video signal to two monitors, either showing the same or different content.
   • Independent audio output for all ports via Optical SPDIF or 3.5mm audio jack.

2. Supports 4 Computers with Keyboard & Mouse:

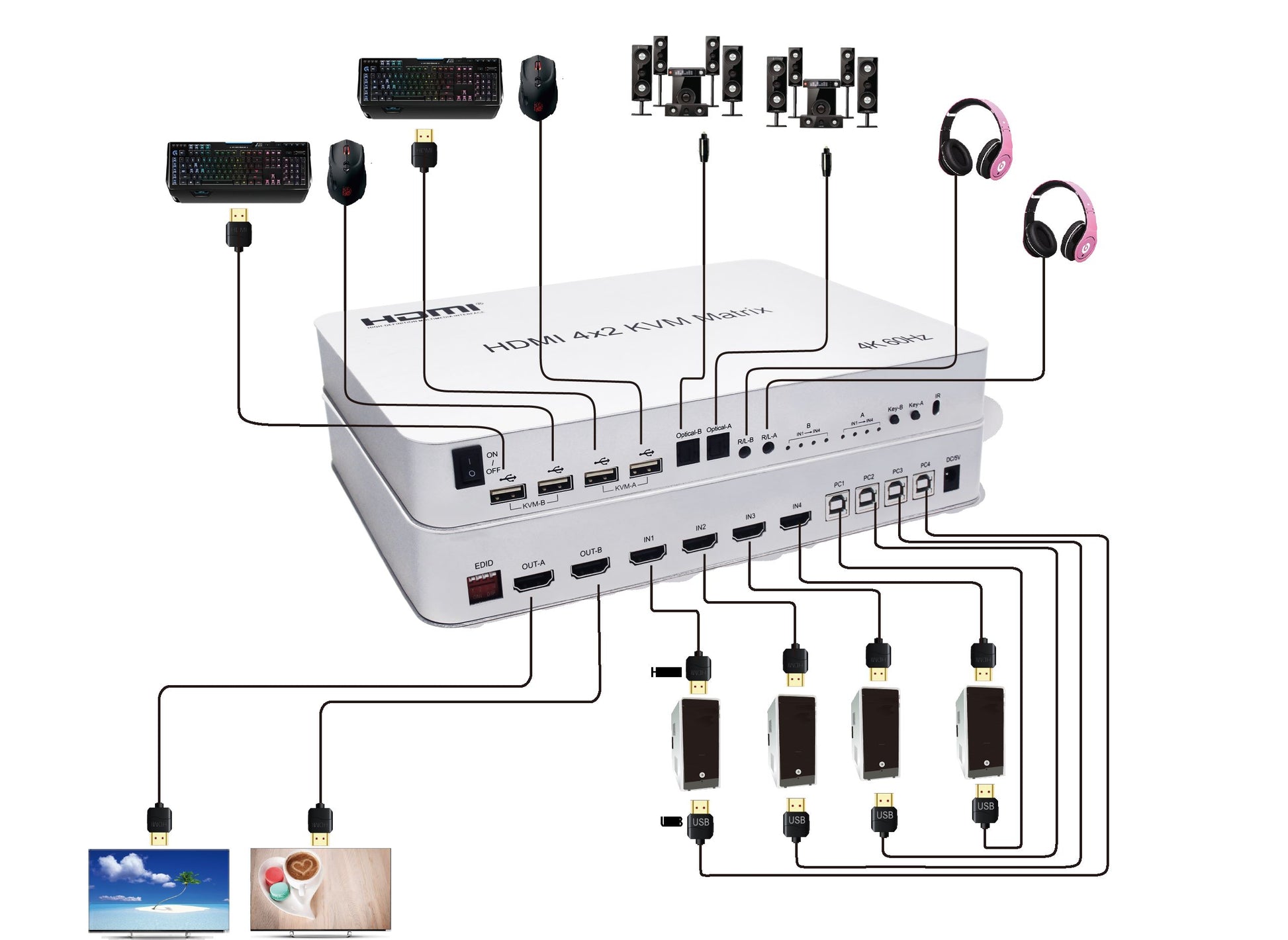

   • Manage up to 4 computers with two sets of keyboard, mouse, and two monitors.

3. High-Resolution Support:

   • Supports HDMI 2.0 and HDCP 2.2 for high-definition video.
   • Resolution support up to 4K @ 60Hz (RGB/YUV 4:4:4), providing a fantastic viewing experience.

4. Multiple Switching Modes:

   • Choose between three switching methods: button, IR remote control, or keyboard hotkeys for easy control.

5. Convenient USB Cables:

   • Comes equipped with 4 USB cables, so you don’t need to purchase them separately.

6. Versatile Application:

   • Ideal for use in entertainment centers, retail, websites, high-definition TV set-top boxes, DVDs, projectors, data centers, meeting rooms, schools, and corporate training environments.

Features:

• Resolution Support:

  • Supports HDMI resolution up to 3840x2160/60Hz (4K).
  • Supports 3D video format.
  • Can downscale 4K input to 2K output.

• Audio Output:

  • Dual HDMI audio extraction, with support for 3.5mm earphone jack and optical fiber interface output simultaneously.
  • Supports audio formats: LPCM, Dolby, DTS 5.1 channel.

• Switching Modes:

  • 3 modes: IR remote control, button switching, and keyboard hotkeys.

• Deep Color Support:

  • Supports 8/10/12-bit deep color for more vivid and detailed images.

Specifications:

• Resolution Support: Up to 3840x2160/60Hz (4K).
• Video Format: 8/10/12-bit deep color.
• Audio Formats: LPCM, DTS, Dolby-AC3 (5.1 channel).
• Max Bandwidth: 600MHz.
• Max Baud Rate: 3x6Gbps.
• Cable Distance:
  • Input (4K/30Hz): Up to 15m with AWG26 HDMI standard cable.
  • Input (4K/60Hz): Up to 5m with HDMI 2.0 standard cable.
  • Output (4K/30Hz): Up to 15m with AWG26 HDMI standard cable.
  • Output (4K/60Hz): Up to 5m with HDMI 2.0 standard cable.
• USB Cable: Standard USB 2.0 A male to B male cable ≤2m.
• Max Working Current: 800mA.
• Power Adapter:
  • Input: AC (50Hz, 60Hz) 100V-240V.
  • Output: DC5V/1.5A.
• Operating Temperature Range: -15 to +45℃.
• Operating Humidity Range: 5% to 90%RH (no condensation).
• Dimensions: 256 x 153 x 33 mm.
• Weight: 1208g.
