4K 60Hz 4x4 HDMI Matrix with 120M Extender & RS232 over RJ45 | HM404M-EX
4K 60Hz 4x4 HDMI Matrix with 120M Extender & RS232 over RJ45 | HM404M-EX
Couldn't load pickup availability
Description
Warm Tips:
There are 3 options available, and each option includes different items. Please choose correctly:
"1x 4X4 Matrix Only" includes only the matrix, no receiver.
"2x 4K60Hz 60m RX" includes only 2 receivers (60m), no HDMI matrix.
"4x 4K60Hz 60m RX" includes only 4 receivers (60m), no extender.
A qualified Cat6 cable is recommended for the matrix extender to work properly.
The "4K 60Hz 60m RX" has two types of printed labels: either HDMI 2.0 or 4K60Hz, random delivery.
Product Introduction:
Our product is new and of high quality. Buy with confidence!

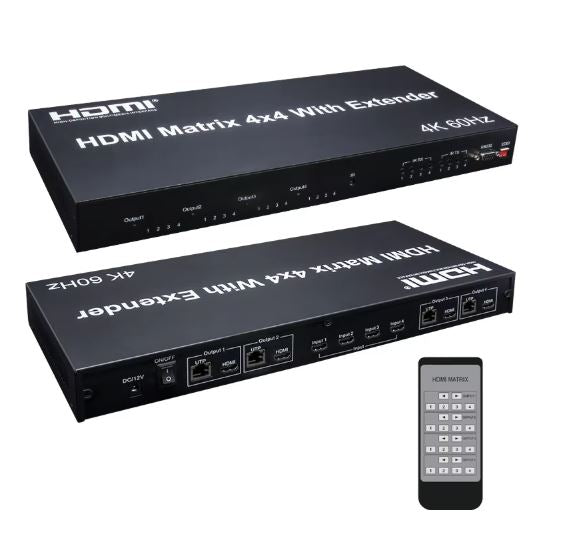

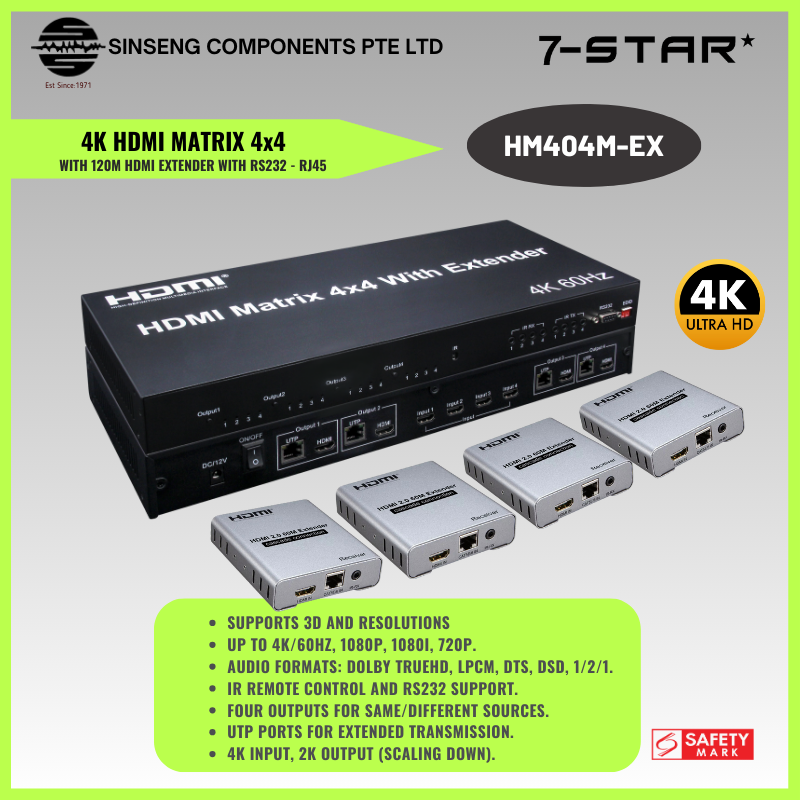

This 4K 60Hz HDMI Matrix 4x4 allows you to connect four HDMI signal sources to four screens simultaneously. You can easily switch or distribute four HDMI signals to four compatible displays or projectors. It comes with additional infrared receiver extensions, IR emitter, RS232, and Ethernet port for remote control. The 4x4 HDMI matrix features equalization and amplification to ensure HDMI signal transmission over long cables without quality loss. This HDMI matrix offers solutions for digital entertainment centers, HDTVs, retail locations, shows, STBs, DVDs, projector factories, security issues, data center control, information distribution, conference room presentations, and corporate or school training environments.
Features:
Supports 3D.
Supports high-definition resolutions: 4K/60Hz, 1080p, 1080i, 720p, and other standard video formats.
Supports audio formats: Dolby TrueHD, LPCM, DTS, DSD, Dolby TrueHD, DPCM.

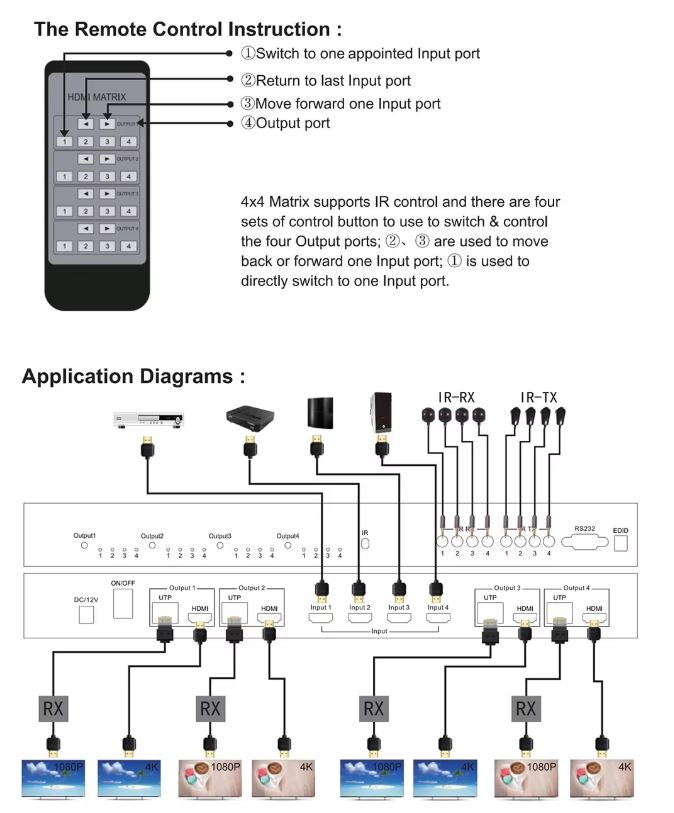

IR remote control support.
RS232 support.
Four outputs can display the same or different sources simultaneously.

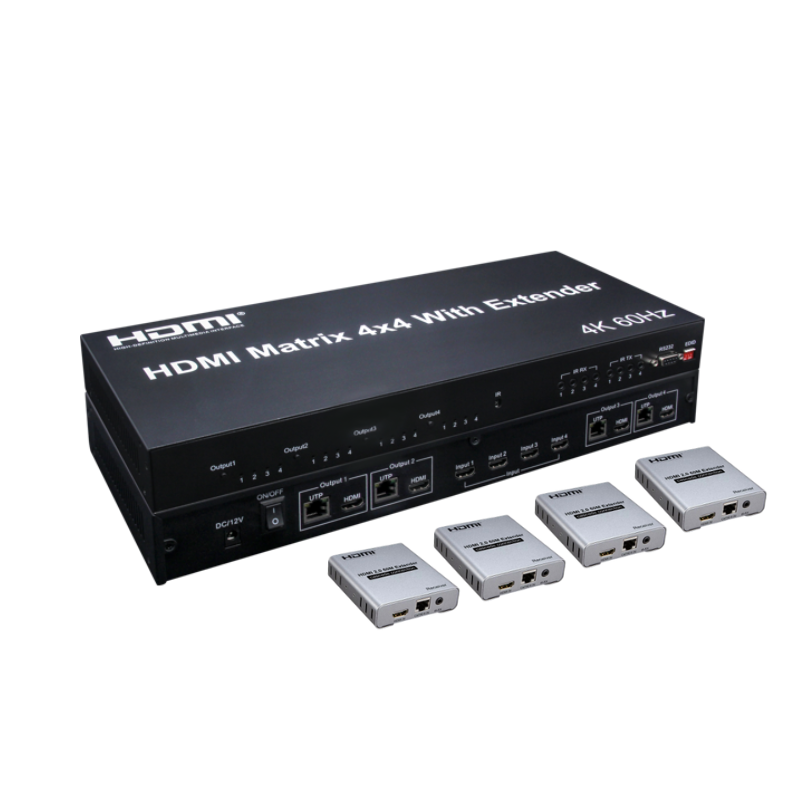

Four UTP ports connected to extenders to extend transmission distance.
Four outputs with HDMI loop and extender, can emit simultaneously.
Supports 4K resolution (input) to 2K resolution (output) (scaling down).
Specifications:
HDMI Resolution: Up to 4K/60Hz
Supported Video Formats: 8/10/12-bit deep color
Supported Audio Formats: Dolby TrueHD, LPCM 7.1, DTS, DDS, DSD
Maximum Baud Rate: 18Gbps
Input Cable Distance: ā¤ 10m AWG24
Output Cable Distance: ā¤ 10m AWG24
HDMI Inputs: 4
HDMI Outputs: 4
Maximum Working Current: 1.6A
Power Adapter: Input: AC (50Hz, 60Hz) 100V-240V; Output: DC 12V/2A
Operating Temperature Range: -15Ā°C to +45Ā°C
Operating Humidity Range: 5% to 90% RH (non-condensing)
Dimensions (L x W x H): Approx. 411x184x46 (mm)
Weight: Approx. 1824g
