48V 24W Passive PoE Adapter | POE4824G

Transmission rate: 10/100/1000Mbps /1G/2G

Switching capacity: 1G/2G.

POE Output Voltage: DC 48V 0.5A

POE Rate: 1G/2G

Input voltage: AC100V-240V, 50~60Hz.

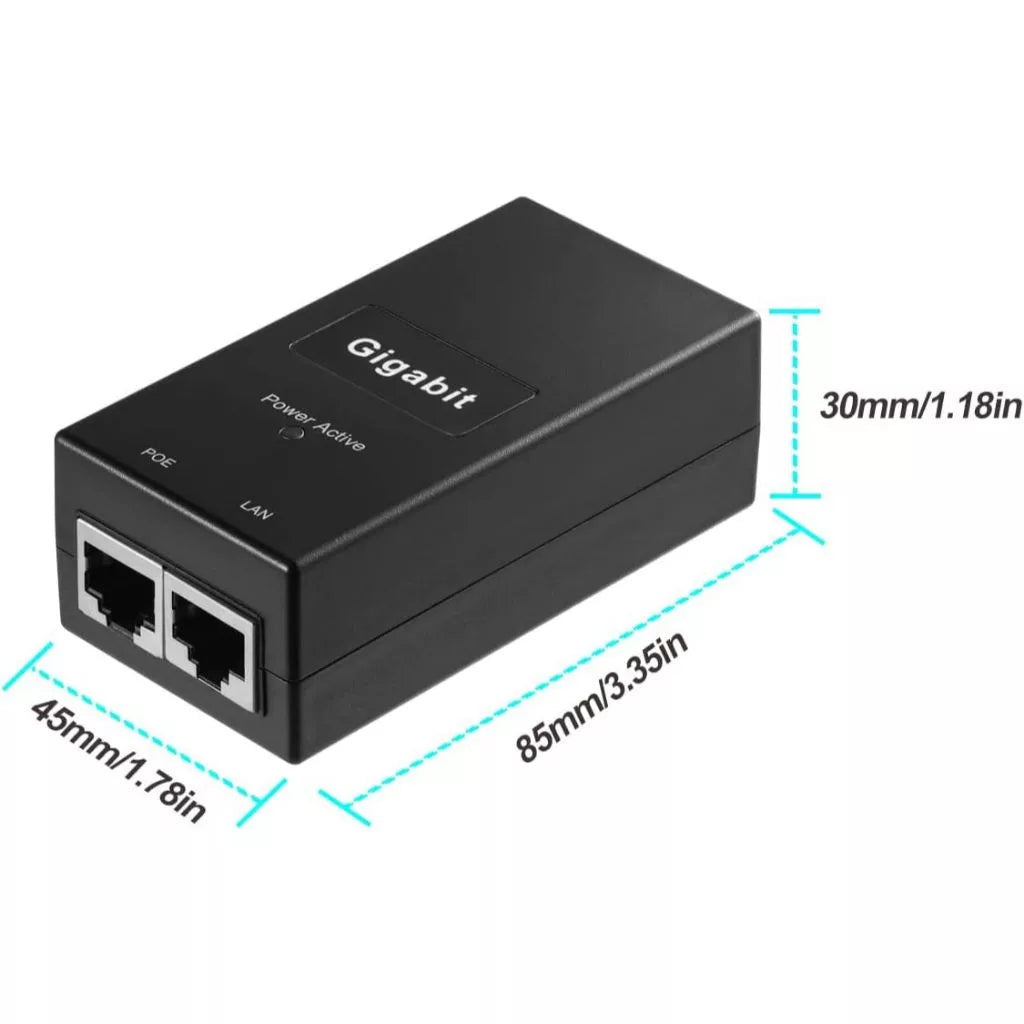

Size: 85 x 45 x 30 mm

Weight: 80 g

Gigabit LAN port: Yes

Power supply: pins: 1/2 (+) 3/6 (-) 4/5 (+) 7/8 (-)

Data: 12345678, 8 pin data.

Efficiency: 80+ %.

Output ripple: 1% max

Switching frequency: 65 kHz.

Line adjustment: +/- 1%.

Load regulation: +/- 3%.

Operating temperature: 0 to 40 °C.

Storage temperature: -30 to 70 °C.

Operating humidity: 35% to 95% non-condensing
