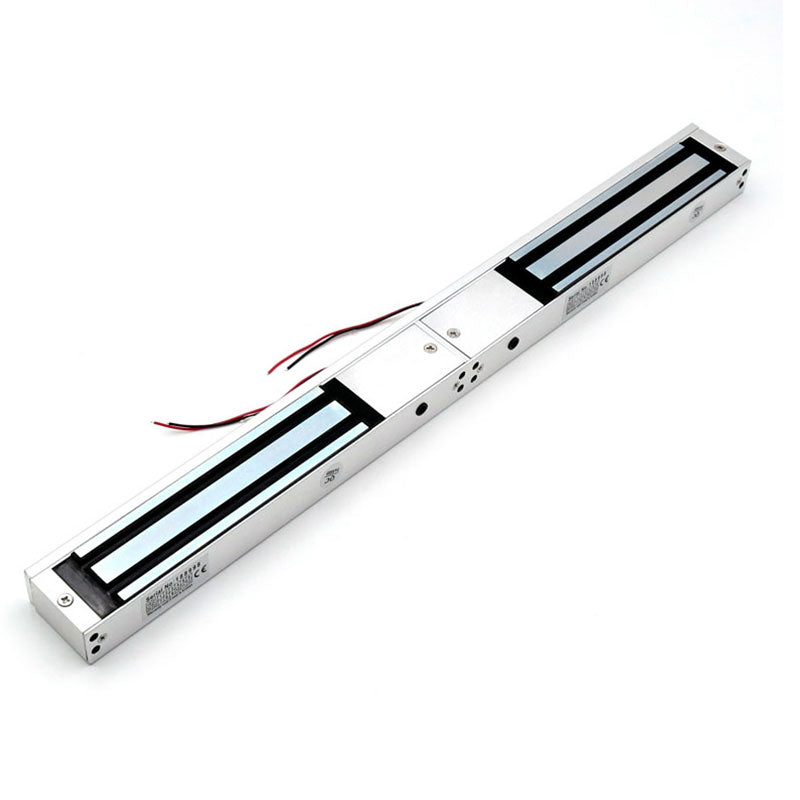

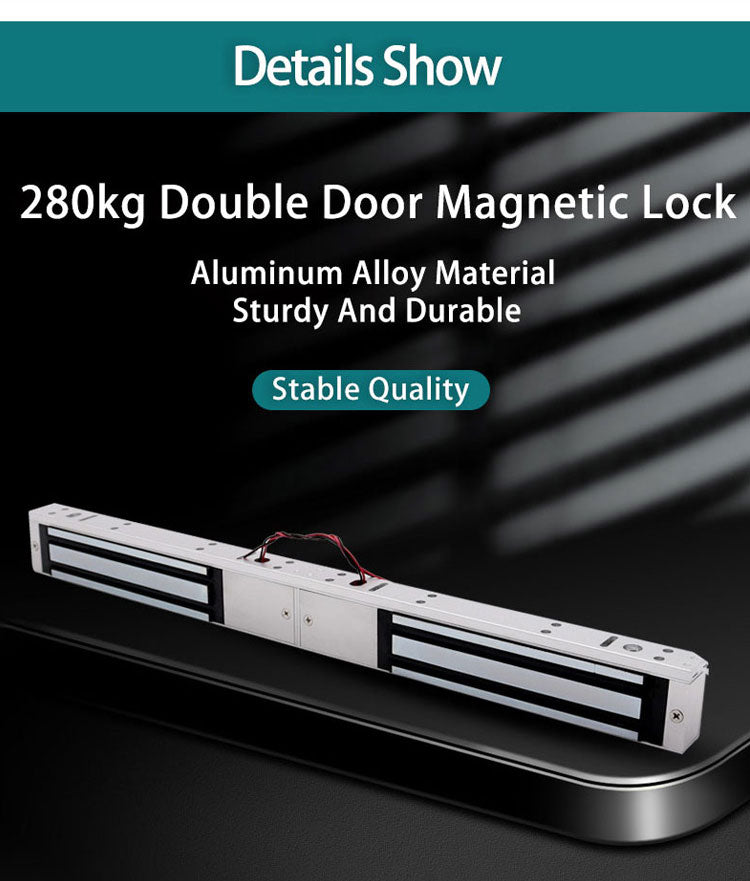

280KG 600lbs 5-Wire Double EM Lock with LED Indicator (Red & Green) | 7SDA-EM600DLED

Product Name: 12V 600lbs Elock Magnet Door Lock, Time Delay Electro Magnetic Lock (280kg) for Malaysia Securitron Maglock

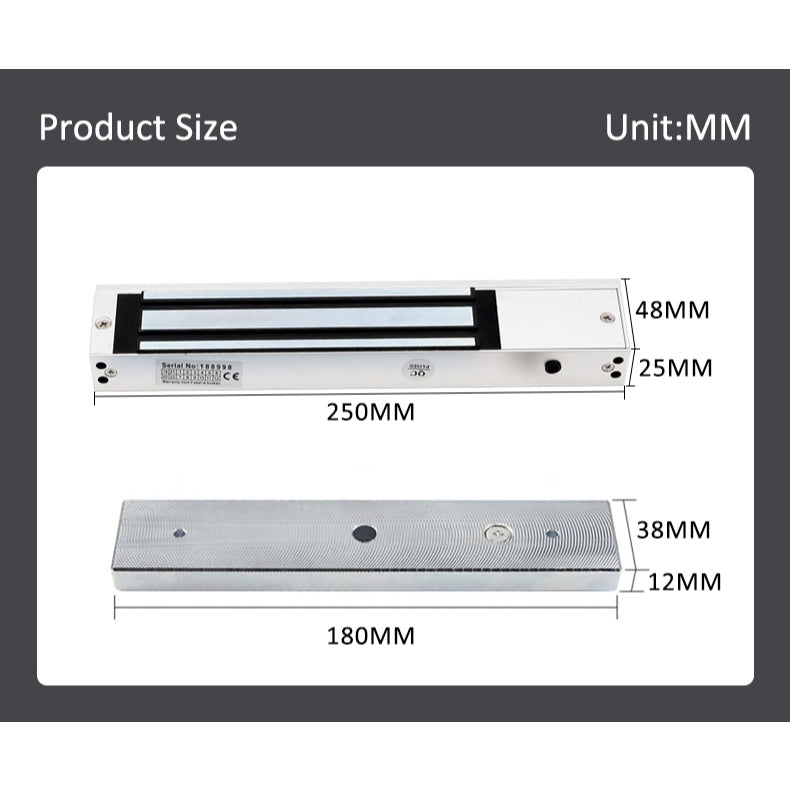

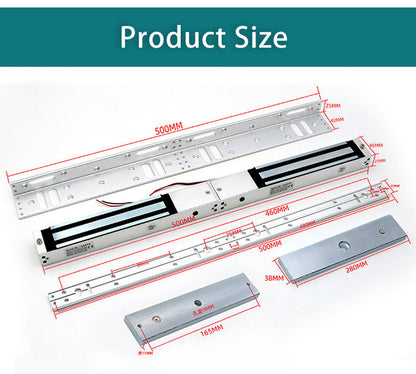

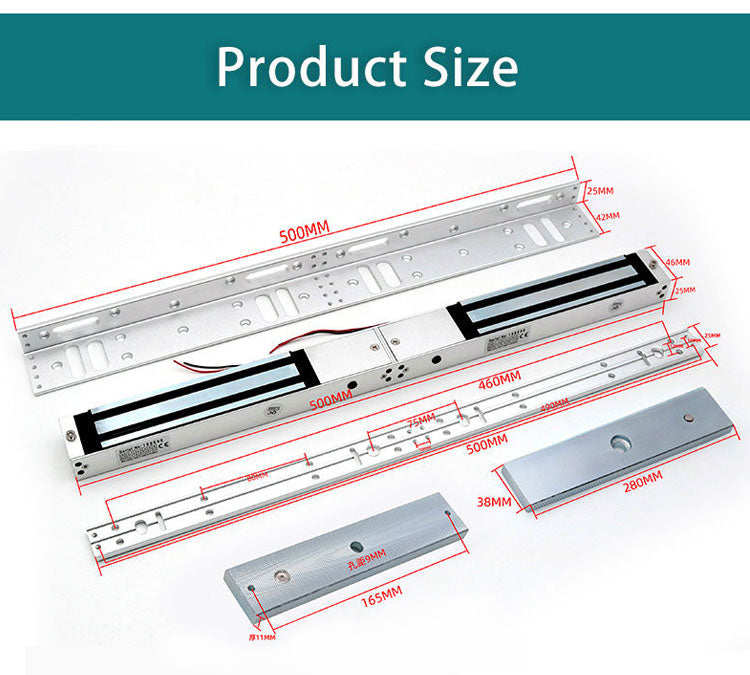

Dimensions: 250mm (L) x 48mm (W) x 25mm (H)

Armature Plate Dimensions: 180mm (L) x 38mm (W) x 12mm (H)

Holding Force: 280kg (600lbs)

Input Voltage: 12 VDC (24VDC optional)

Current: 12V/500mA or 24V/250mA

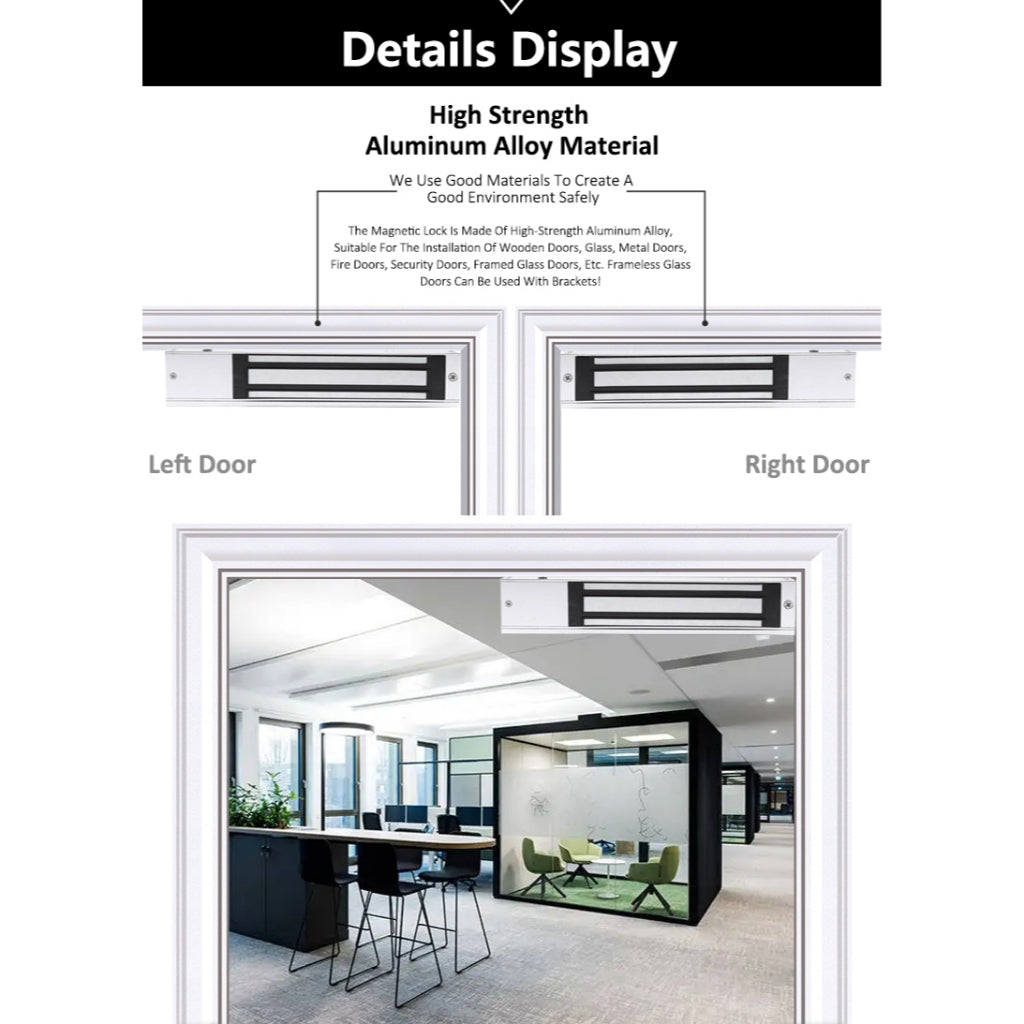

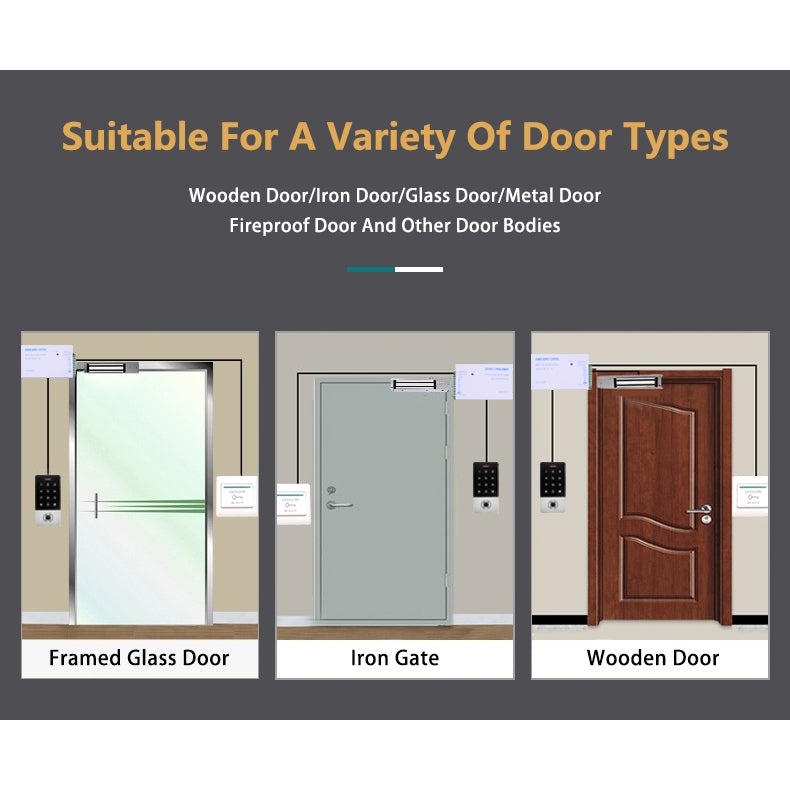

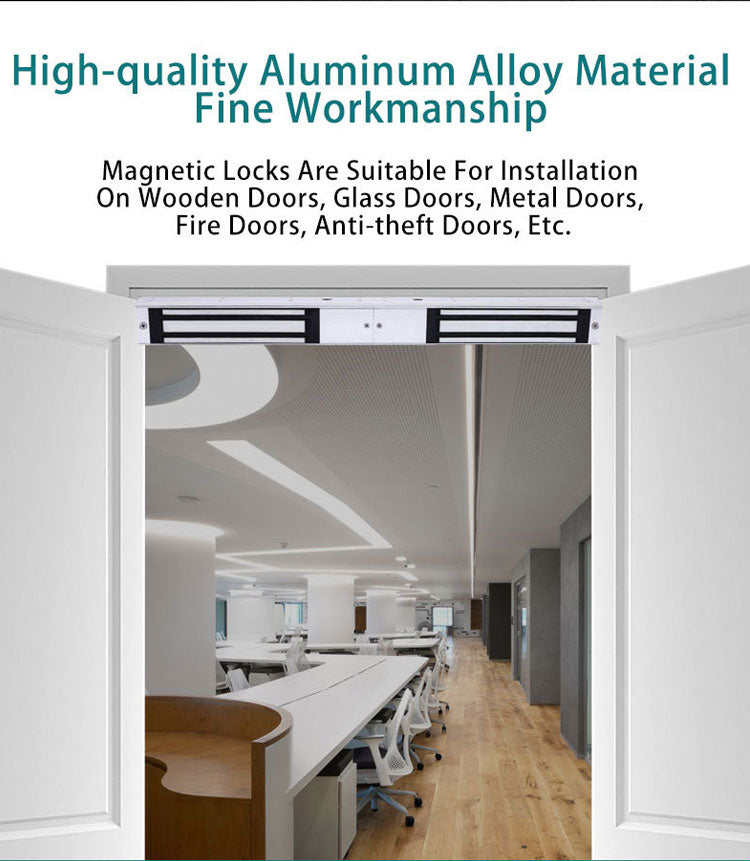

Suitable For: Wooden doors, Glass doors, Metal doors, Fireproof doors

Surface Temperature: ≤ +20℃

Operating Temperature: -10~+55℃ (14-131F)

Humidity: 0~90% (non-condensing)

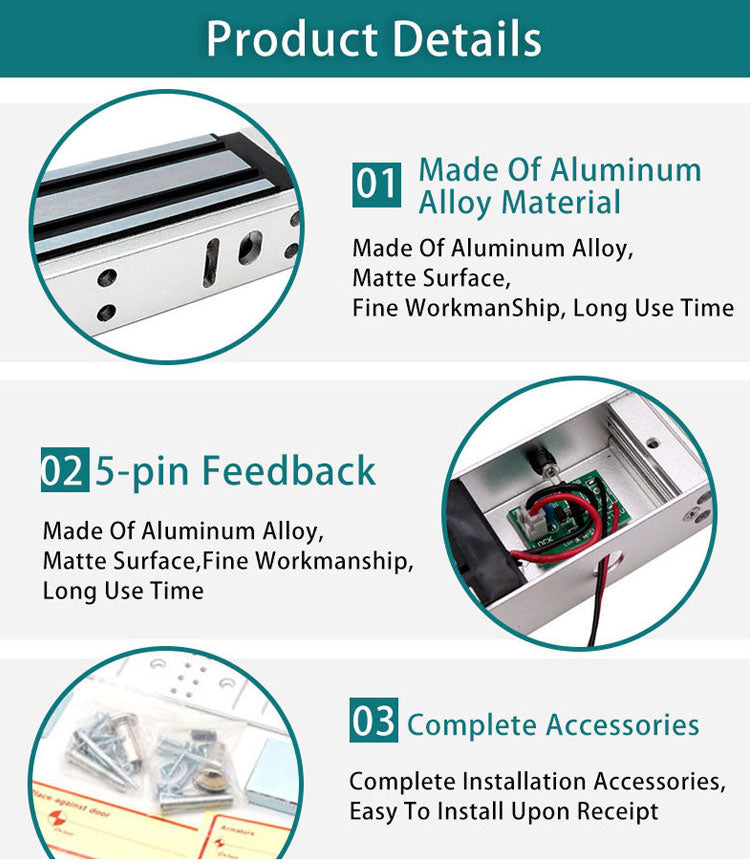

Cover Finish: Anodized aluminum / Stainless steel

Lock Finish: Zinc

Armature Plate Finish: Zinc

Weight: 2 kg
