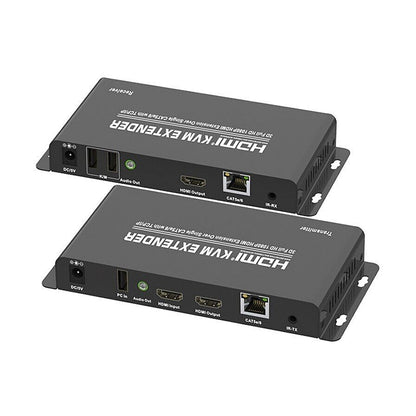

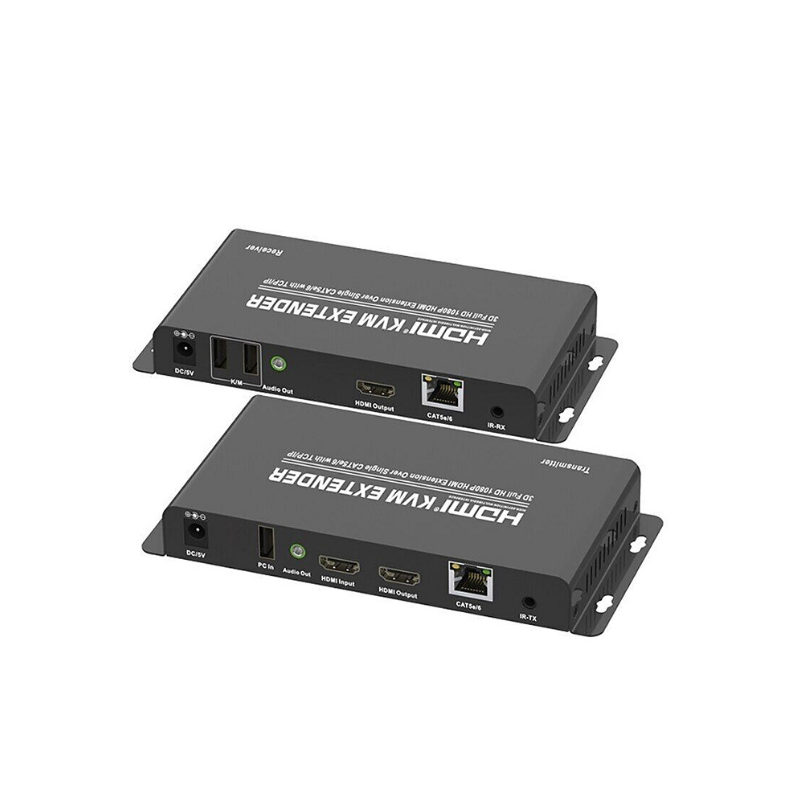

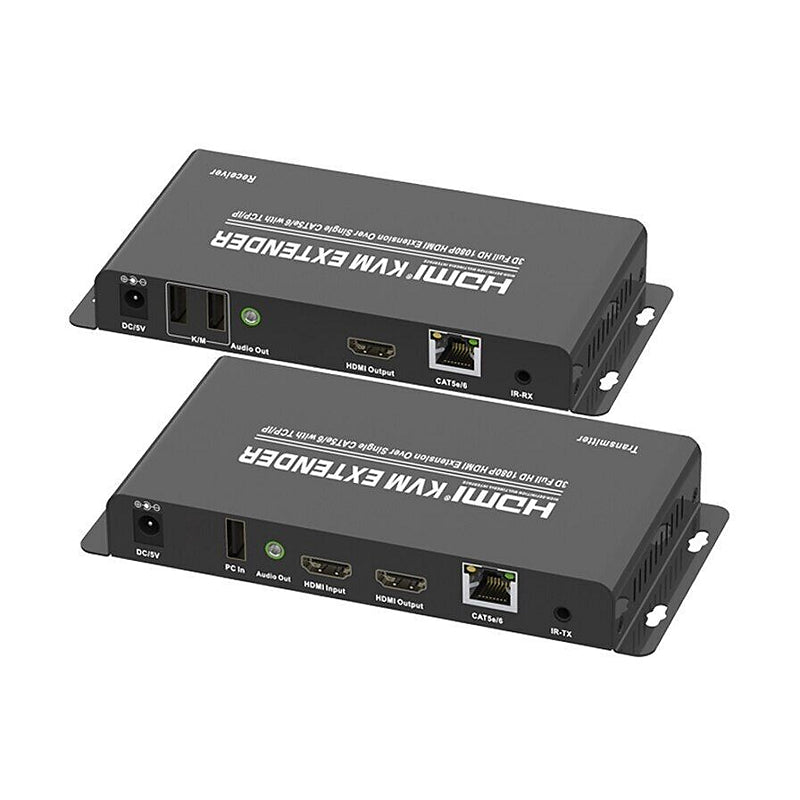

200M 4K KVM HDMI/USB Extender | KVM-E200

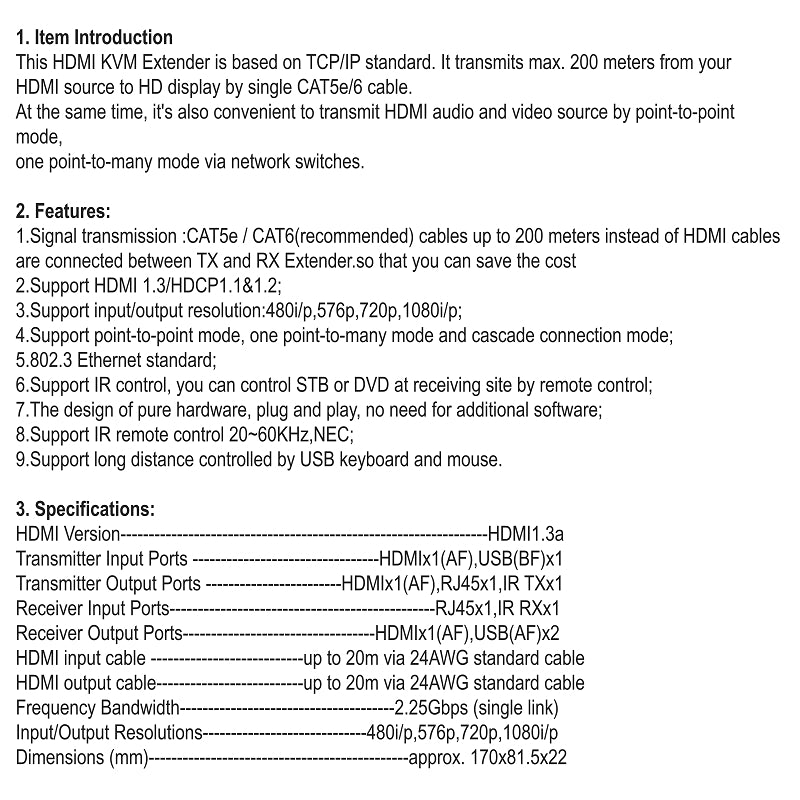

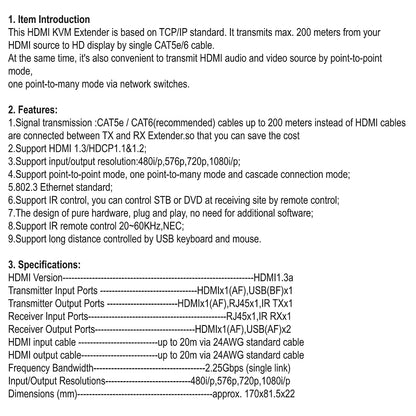

Features & Specifications:

• Transmission Distance: Up to 200 meters (via CAT5e/6 cable).

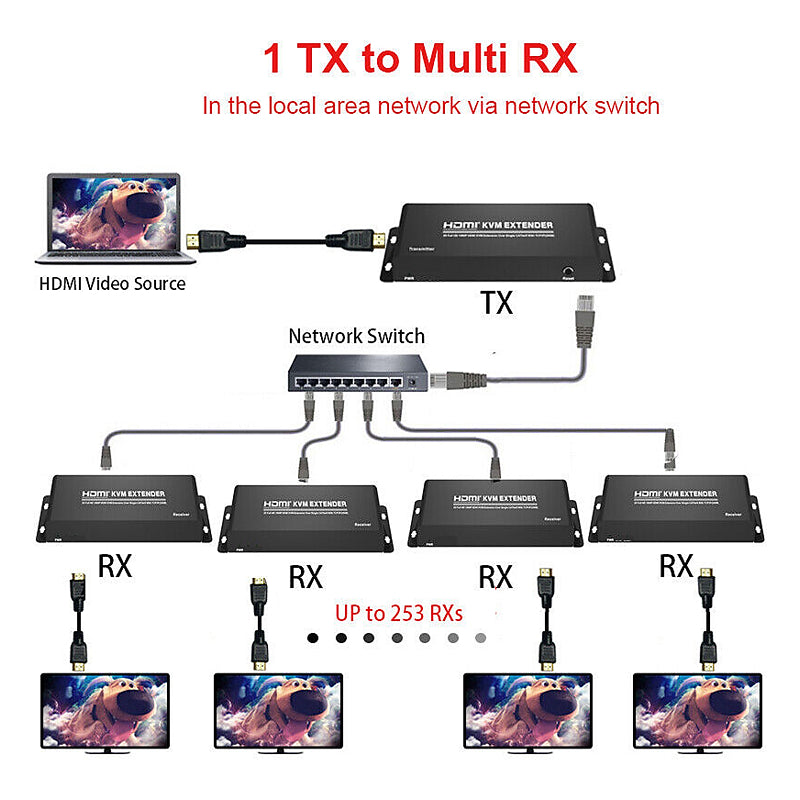

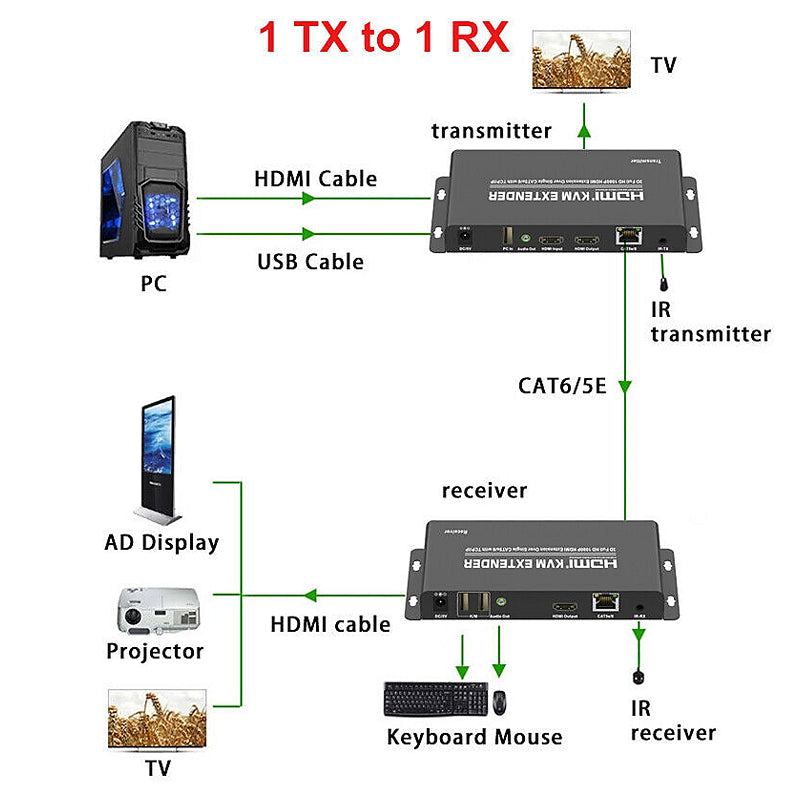

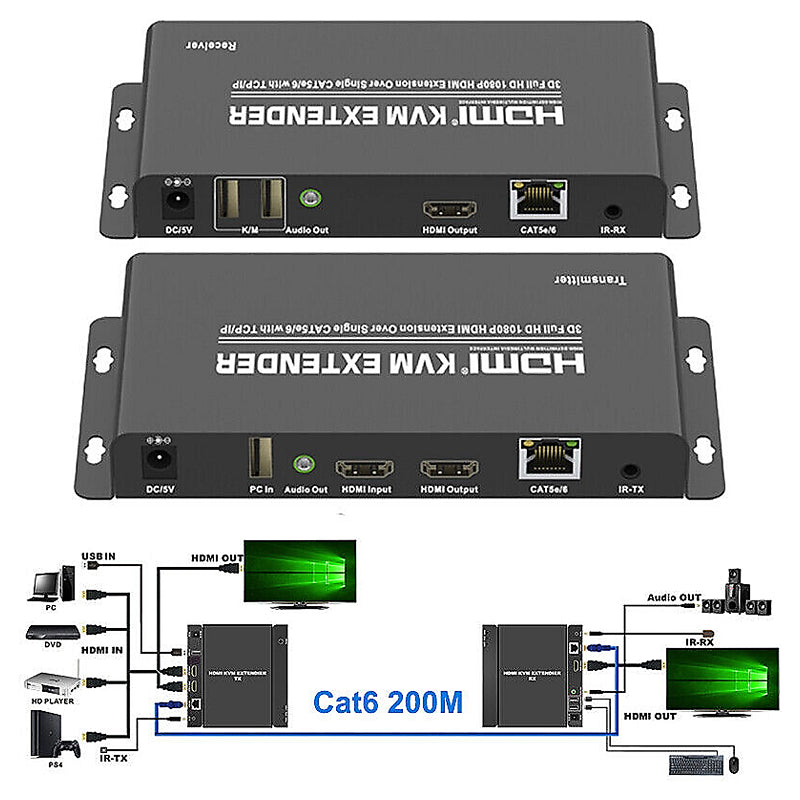

• Connection Modes: Point-to-point, multipoint-to-multipoint, and cascade connections.
• IR Control: Supports one-way IR extension, allowing remote control of devices (e.g., STB or Blu-ray DVD) at the receiving site.
• HDMI Compatibility: Supports HDMI 1.3/1.4 and HDCP 1.1/1.2/1.4.
• Ethernet Standard: 802.3 Ethernet for reliable network transmission.
• Plug-and-Play: Pure hardware design, no need for additional software installation.

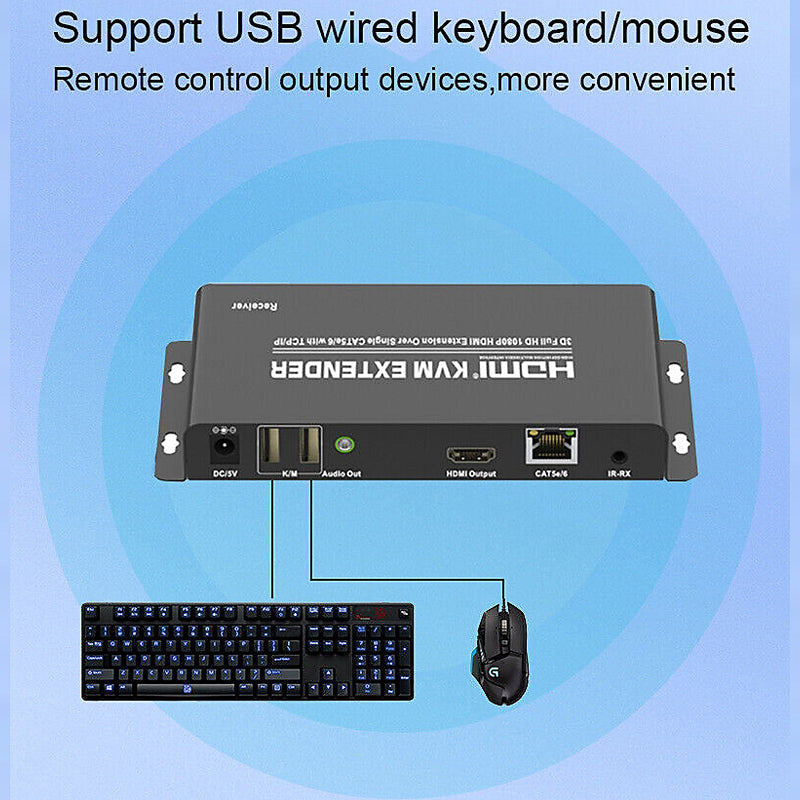

• IR Remote Control: Supports IR frequencies (38KHz) and NEC format, allowing control via keyboard and mouse for long-distance management.

Audio & Video Specifications:

• Audio Formats:
  • DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD.
• Video Input: Supports video resolutions of 480i, 480p, 576i, 576p, 720p, 1080i, 1080p at 24/50/60Hz.
• Deep Color Support: 8/10/12-bit deep color for vivid color reproduction.
• Data Rate: 1.65Gbps and a TMDS clock rate of up to 165MHz for high-quality signal transmission.
• Cable Requirement: CAT5e/6 (recommended), with a maximum transmission distance of 656ft (200 meters).

Build & Design:

• Construction: Metal casing with 24K gold-plated connectors to ensure excellent thermal management and reduce signal interference.
• Power Supply: Includes an AC power adapter for reliable operation.

Key Benefits:

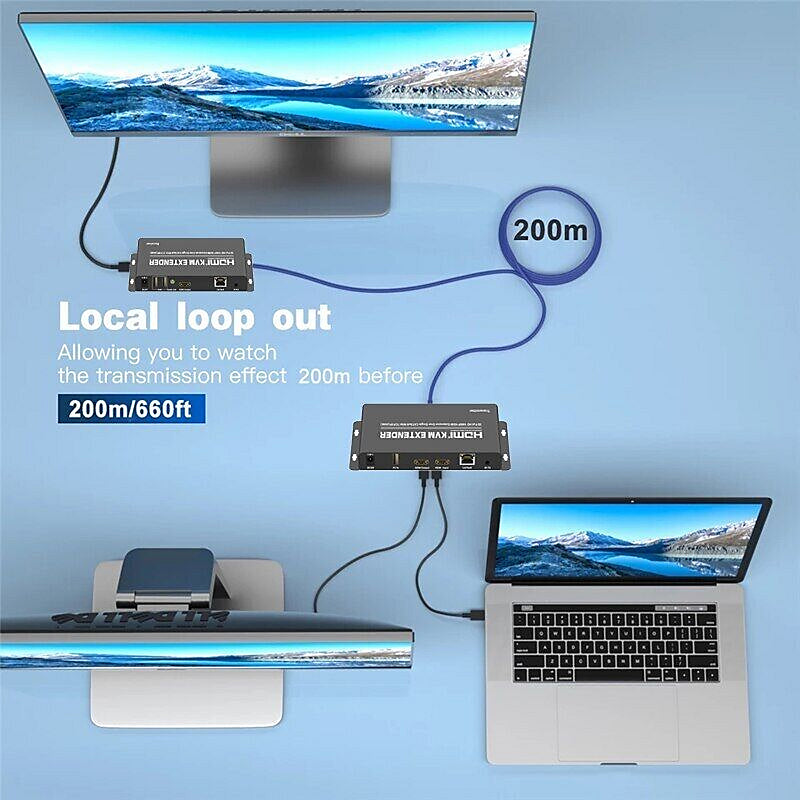

• Extended Transmission: Breaks the limitations of traditional HDMI cables by enabling long-distance transmission of up to 200 meters.
• Cost-Effective: Using a single CAT5e/6 cable saves on infrastructure and cabling costs.
• High-Quality Audio/Video: Supports high-definition audio and video formats for an immersive viewing experience.
• Flexibility: The various connection modes offer flexibility in different network configurations, making it suitable for various setups.
