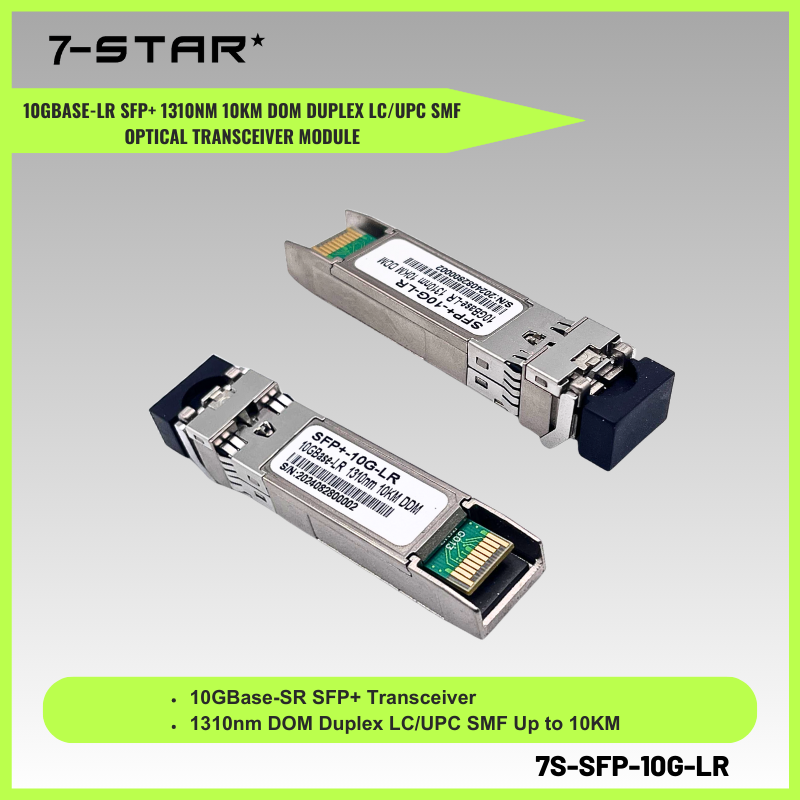

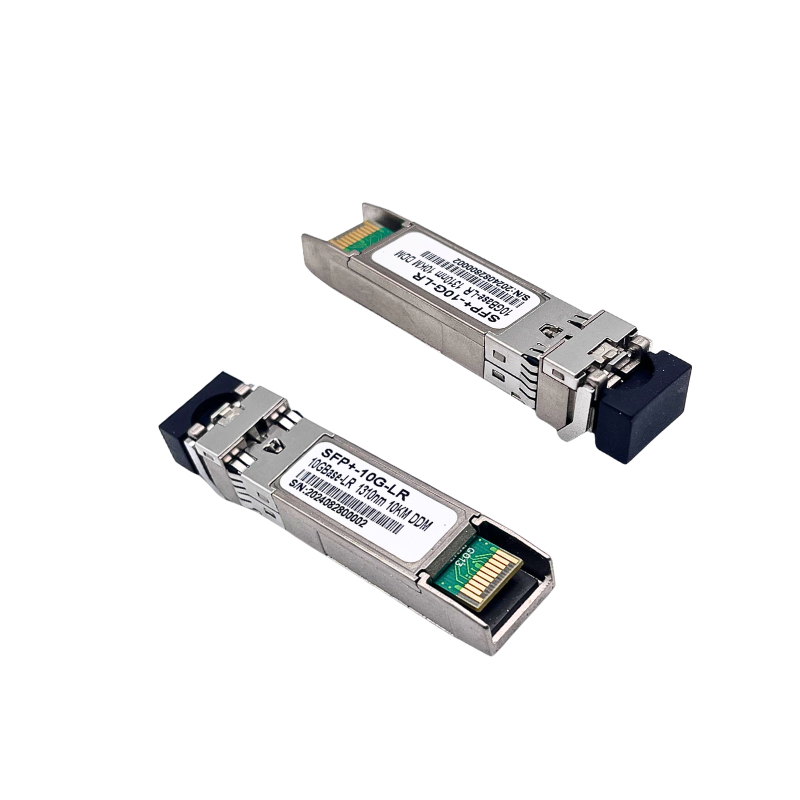

10G BASE-LR SFP+ 1310nm 10km Duplex LC/UPC SMF Optical Transceiver | 7S-SFP-10G-LR

10G BASE-LR SFP+ 1310nm 10km Duplex LC/UPC SMF Optical Transceiver | 7S-SFP-10G-LR

$27.90 SGD
$35.00 SGD $27.90 SGD
Sale Sold out

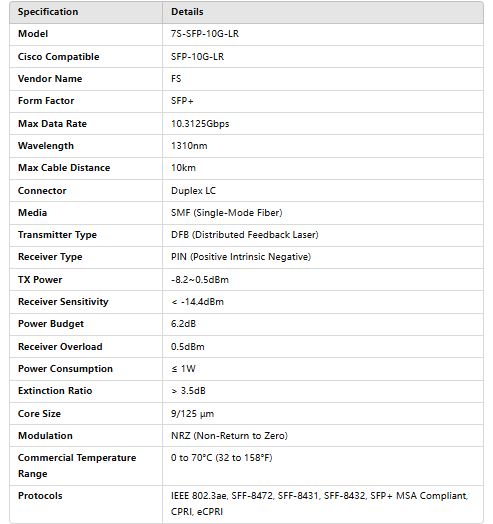

  • Model: 7S-SFP-10G-LR
  • Cisco Compatible: SFP-10G-LR
  • Vendor Name: FS
  • Form Factor: SFP+
  • Max Data Rate: 10Gbps
  • Wavelength: 1310nm
  • Max Cable Distance: 10km
  • Connector: Duplex LC
  • Media: SMF (Single-Mode Fiber)
  • Transmitter Type: DFB (Distributed Feedback Laser)
  • Receiver Type: PIN (Positive Intrinsic Negative)
  • TX Power: -8.2 to 0.5dBm
  • Receiver Sensitivity: < -14.4dBm
  • Power Budget: 6.2dB
  • Receiver Overload: 0.5dBm
  • Power Consumption: ā‰¤ 1W
  • Extinction Ratio: > 3.5dB
  • Core Size: 9/125 Āµm
  • Modulation: NRZ (Non-Return to Zero)
  • Commercial Temperature Range: 0 to 70Ā°C (32 to 158Ā°F)
  • Protocols Supported:
    • IEEE 802.3ae
    • SFF-8472
    • SFF-8431
    • SFF-8432
    • SFP+ MSA Compliant
    • CPRI
    • eCPRI
View full details
